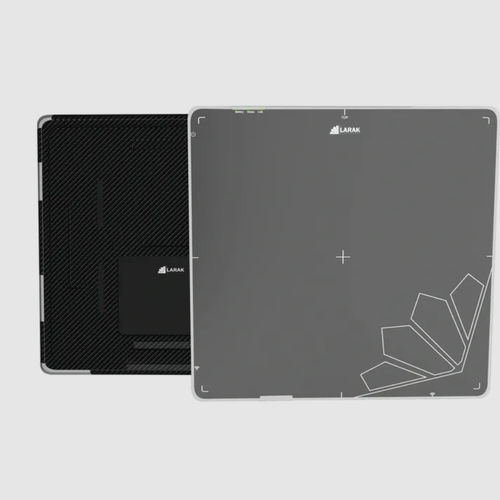

Portable flat panel detector GF1417WL

wireless14 x 17

GF1417WL
Glass-Free · Wired / Wireless

Product Overview
High-performance Digital X-Ray Flat Panel Detector. Designed for general radiographic imaging applications with reliable image quality and robust performance. FDA Database.

Key Features

• Ultra-Lightweight Design with Glass-Free and Carbon Body
• Customizable Deposition Thickness

Certifications

• 3G 4335 Prime
• MFDS
• CE MDD

Dimensions

• 460 × 384 × 15 mm

Structural Ratings

• 400 kg Uniform Load
• 200 kg Point Load
• 200 kg Bending Strength
• IP56 Dust/Water

Technical Specifications

• Detector Type: a-Si Glass-Free TFT
• Scintillator: CsI
• DQE: 70% (0 lp/mm, Min)
• MTF: 83% (0.5 lp/mm, Min)
• Pixel Pitch: 140 µm
• Spatial Resolution: 3.57 lp/mm
• Active Detector Matrix: 3,040 × 2,466 pixels
• Effective Area: 425.6 × 345.24 mm
• Grayscale: 16-bit
• Connectivity: Wired / Wireless
• AED: Available
• Weight: 2.3 kg
• Preview Time: Wireless
• Cycle Time: Wireless
• Battery Charging: 6 hrs (Wired) / 3 hrs (Battery charger)
• Battery Operating: >1,500 images @ 7 sec. cycle · 10 hrs standby · Li-Ion 3,200 mAh
•
