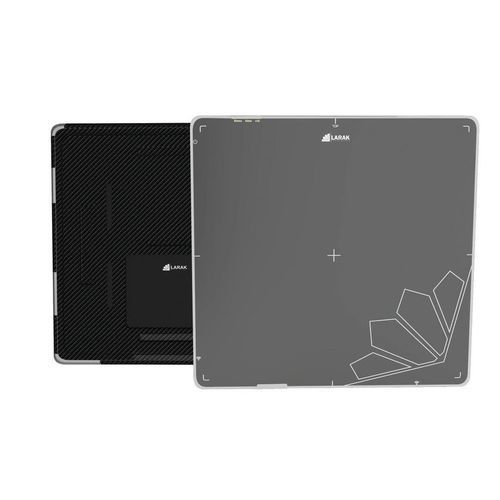

Multipurpose radiography flat panel detector GF1417WL14 x 17
Add to favorites
Compare this product
Characteristics
- Applications
- for multipurpose radiography
- Dimensions (inches)
- 14 x 17
Description
GF1417WL
Glass-Free · Wired / Wireless · 14×17 format · 2.3 kg
Application
Options PDF
Dimensions
Product Overview
Documentation
Technical Specifications
Glass-Free · Wired / Wireless · 14×17 format · 2.3 kg
Application
- Mobile X-Ray Systems
- ICU & Bedside Imaging
- Emergency Imaging
- Orthopedic Imaging
- General Radiography
Options PDF
- Wired / Wireless
- AED Support
Dimensions
- 460 × 384 × 15 mm
- Uniform Load: 400 kg
- Point Load: 200 kg
- Bending Strength: 200 kg
Product Overview
- High-performance Digital X-Ray Flat Panel Detector
- Designed for general radiographic imaging applications
- Reliable image quality and robust performance
- FDA Database
- Key Features
- Ultra-Lightweight Design with Glass-Free and Carbon Body
- Customizable Deposition Thickness
Documentation
- Certifications: 3G 4335 Prime · MFDS · CE MDD
Technical Specifications
- Detector Type: a-Si Glass-Free TFT
- Scintillator: CsI
- DQE: 70% (0 lp/mm, Min)
- MTF: 83% (0.5 lp/mm, Min)
- Pixel Pitch: 140 µm
- Spatial Resolution: 3.57 lp/mm
- Active Detector Matrix: 3,040 × 2,466 pixels
- Effective Area: 425.6 × 345.24 mm
- Grayscale: 16 bit
- Connectivity: Wired / Wireless
- AED: Available
- Weight: 2.3 kg
- Dust/Water-Resistance: IP56
- Preview Time: Wired
- Cycle Time: Wired
- Battery Charging: 6 hrs (Wired) / 3 hrs (Battery charger)
- Battery Operating: >1,500 images @ 7 sec. cycle · 10 hrs standby · Li-Ion 3,200 mAh
Catalogs
LARAK DR GF1417WL
1 Pages
