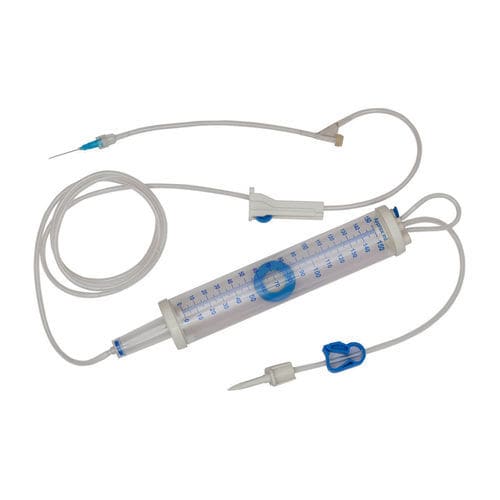

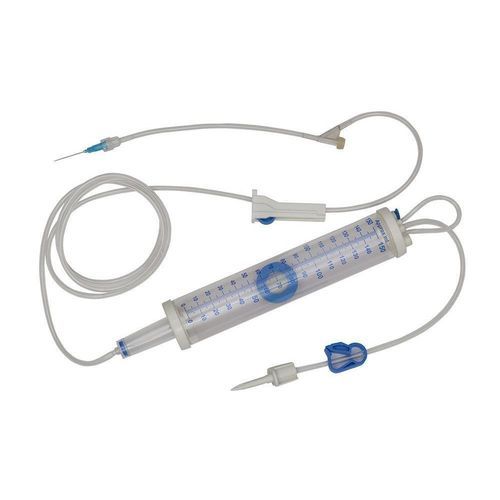

PVC infusion set

with Y portwith drip chamber

Product description

• Measured-volume IV set with prefilled fluid and built-in air-vent measurement chamber for accurate administration of intravenous fluids.
• Y-injection port for concomitant drug administration without interrupting infusion.
• Vented spike permits controlled air entry into the fluid container to ensure uninterrupted flow during infusion.
• Automatic shut-off floating valve prevents air embolism, stops flow at the set chamber level and provides visual indication of remaining volume.
• Roller clamp for precise flow-rate adjustment.
• Soft, kink-resistant medical-grade non-toxic PVC tubing for reliable handling.
• 6% Luer connector for secure, leakproof connection to devices and catheters.
• Flow factor: approximately 60 drops per ml.
• Sterile and pyrogen-free; single-use.

Packaging details
Products | Size | No. of Pieces/Carton | L (cm) | W (cm) | H (cm)
MV Set with Fluid | 150 ML | 100 | 53.5 | 32 | 42.5

Technical specifications

• Chamber: Built-in air-vent measurement chamber with floating automatic shut-off valve.
• Injection: Y-injection port for simultaneous medication administration.
• Spike: Vented spike design to maintain continuous infusion flow.
• Valve: Automatic floating shut-off to reduce air trapping and indicate chamber volume.
• Flow control: Roller clamp for accurate adjustment of infusion rate.
• Tubing: Soft, kink-resistant, medical-grade non-toxic PVC.
• Connector: 6% Luer connector, leakproof.
• Flow rate: Approx. 60 drops/ml.
• Sterility: Sterile, pyrogen-free; intended for single use.
• Packaging: Carton of 100 sets; each set configured for 150 ml measured volume; carton dimensions L x W x H = 53.5 x 32 x 42.5 cm.
