Medical valve Proway

selectorrotarypolycarbonate

Product overview

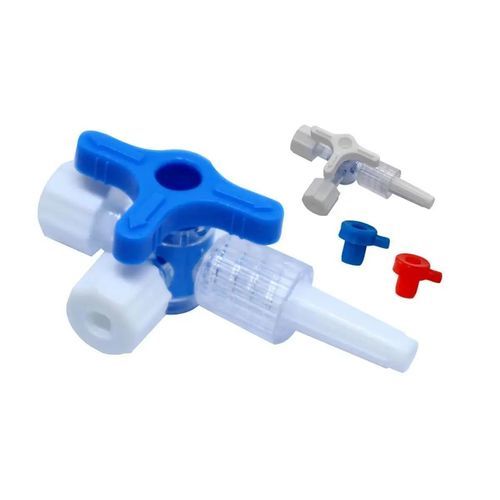

The Proway three-way stopcock is a medical stopcock designed to route and control fluid flow between three channels through a single IV access. The device features a rotating handle connected to a central chamber with three ports and is suitable for intra-arterial and intra-venous systems.

Applications

• Infusion therapy: connect multiple IV lines or devices for simultaneous or sequential administration of fluids and medications.
• Line routing and switching between different fluid sources or treatments in clinical settings.

Key features

• Material: transparent medical-grade polycarbonate.
• Tap rotation: smooth 360° rotation for directional flow control.
• Luer compatibility: 6% Luer taper for international interoperability.
• Pressure options: tested at 3 bar; available 5 bar variant.
• Flow performance: uniform infusion flow, minimized turbulence and air-bubble formation.
• Flow control: accurate and continuous channel flow.
• Variants: lipid‑resistant and non‑lipid‑resistant versions.
• Tap movement option: 45° click tap movement for defined positions.
• Color options: tap and pins available in red / white / blue.

Packing details

• Individually sterile, blister packed.
• Packaging: 50 pieces (inner pack) / 500 pieces (master carton).
• Master carton dimensions: 54 × 29 × 18 cm (L × W × H).

Technical specifications

• Material: transparent medical-grade polycarbonate.
• Rotation: 360° smooth handle rotation.
• Connection: 6% Luer taper (international compatibility).
• Pressure rating: tested to 3 bar (5 bar option available).
• Hydraulic performance: uniform infusion flow, reduced turbulence and prevention of air bubbles.
• Availability: lipid‑resistant variant; color options for components.
• Packing format: sterile individual blister; inner pack/master carton quantities as above.
