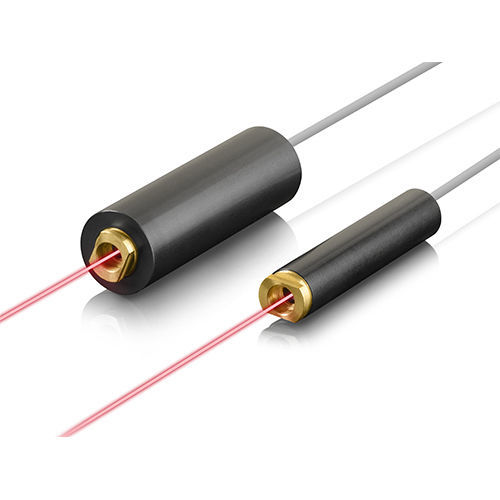

Laser module FLEXPOINT® Dot

laser module
laser module
laser module
Add to favorites
Compare this product


Characteristics

Wavelength

Min.: 520 nm

Max.: 905 nm

Description

Laser Components offers dot lasers with a round and elliptical beam profile Description Laser Components offers dot lasers with a round and elliptical beam profile in the wavelength range from 520-905 nm and a power output of up to 100 mW. Precise positioning and measurement systems require a high-quality laser source. The laser modules of the FLEXPOINT® series are of the highest quality. Dot lasers come with a round or elliptical beam profile. Laser diodes are available in the wavelength range from 520-905 nm. The output power can be set according to customer specifications from a few microwatts up to 100 mW. We also build laser modules that have to be assigned to a specific laser class (e.g., laser class 1, 2, or 3R). The T85 series is available for higher operating temperatures. As an option, all dot lasers can be modulated or equipped with an external power adjustment. The supply voltage is typically 4.5-6 VDC or 4.5-30 VDC. Standard housings measure 57 mm x 11.5 mm; however, customer-specific housings can also be manufactured and used. FLEXPOINT® laser modules are all "made in Germany" and have been the standard in positioning and measurement tasks for more than 10 years.
