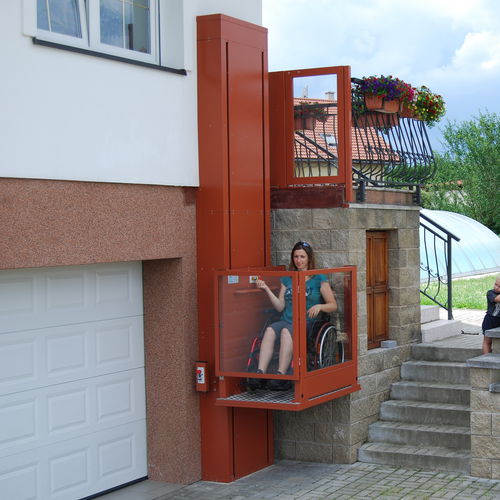

Wheelchair lifting platform Alpin

staircase-mounted

Resistant Low maintenance due to robust chain drive Simple Needs only a small foundation without pit Adaptable Various platform sizes and variants are possible The Alpin vertical platform lift is an economic and efficient alternative to elevators. It is designed for convenient use by the elderly or handicapped, occupying minimum space without structural modification or additional building work. Lifting heights up to 4000 mm Platform walls made of safety glass Quick and easy assembly Coating in all RAL colours possible Optional side entrance or exit Optionally with automatic door openers CE & TÜV certified based on the latest European Regulations Max. lifting height: 4000 mm Max. loading capacity: 300 kg Max. platform sizes: Width: 1050 mm Length: 1400 mm Drive system: Chain drive Speed: 0.11 m/s Power supply: 3 x 400 V Optional 1 x 230 V Surface treatment: Coated in RAL 9007 (standard) All RAL colours optional
