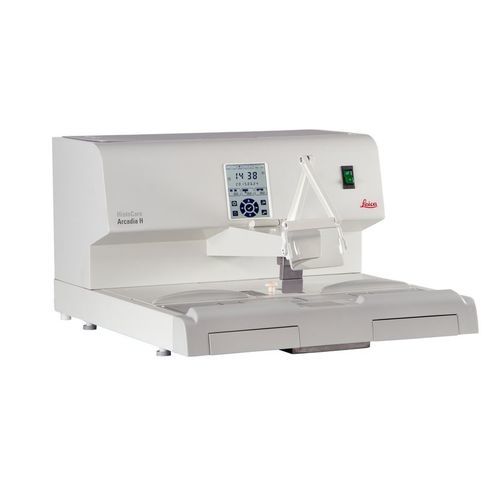

Automatic paraffin dispenser HistoCore Arcadia H

laboratoryfor embedding systemsbenchtop

Product overview
The HistoCore Arcadia H heated paraffin embedding station is designed for laboratory histology embedding tasks. It offers simple operation and precise temperature control to ensure a smooth workflow with reliable, fast embedding. Wristpads, an improved magnifier and an intuitive LCD touchscreen support accurate sample handling and processing.

Key features

• Wristpads for operator comfort and stability
• Redesigned magnifier for embedding small biopsies
• LCD touchscreen for intuitive control and monitoring
• Bright white LED illumination for enhanced contrast and specimen visibility
• Easy-to-open removable trays to keep cassettes and molds warm and accessible
• Metal working surface with reduced adhesion and a special scraper for cleaning crevices

Modular system
The Arcadia modular embedding system comprises two independent units: the heated Arcadia H and the Arcadia C cold plate, allowing flexible layout of the embedding workflow to match laboratory requirements.

Smooth workflow
The symmetrical, unobstructed workspace keeps cassettes, molds and accessories warm and within reach to support efficient batch processing.

Simple operation
The large-lens magnifier with straightforward positioning eases embedding of very small and complex biopsies; controls and user interface are designed for rapid operator learning and use.

Easy to clean
The Arcadia H features a metal working surface with reduced adhesion and a robust scraper to remove paraffin from all crevices.

Product references
14039357257, 14039357259, 14039357258

Specifications

• Dimensions (W x D x H): 636 mm x 560 mm x 384 mm
• Weight: 27 kg
• Operating temperatures (paraffin heating): 50°C to 75°C
• Removable tray capacity: approx. 150 cassettes
• Paraffin tank capacity: max 4 L
• Environmental operating temperature: 20°C to +30°C
• Power supply: 110 - 120 V AC, 220 - 240 V AC, 50/60 Hz
• Overvoltage Category: II
• Power consumption: 1000 VA max
