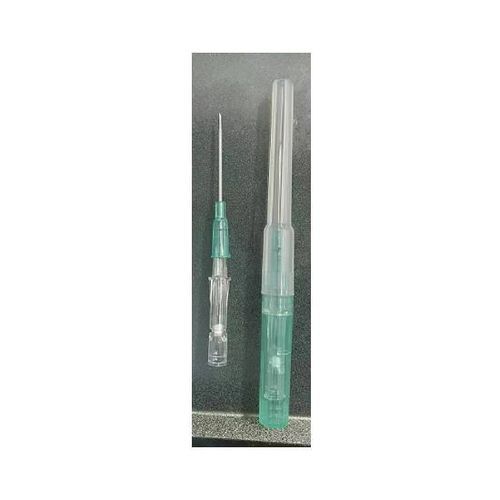

IV infusion catheter LZZZ series

venous

Product Overview
The IV catheter family is designed for intravenous infusion therapy. Available in a pen-like design and winged injection variants, the range supports multiple gauges and catheter lengths for clinical use.

Key Features

• Passive safety shield for needle protection
• Integrated stabilization platform
• Double flashback technology for instant blood return confirmation
• Universal back-cut bevel for consistent puncture performance
• Good puncture performance across gauges
• Radiopaque stripes for X-ray visualization
• Catheter material available in FEP
• Not made with DEHP, Latex/Natural Rubber

Model Specifications

• Pen-like — LZZZ418D2 — 18G — 32 mm — Gravity flowrate 85 ml/min — Vent fitting — Color coding: Deep green
• Pen-like — LZZZ420D2 — 20G — 32 mm — Gravity flowrate 50 ml/min — Vent fitting — Color coding: Pink
• Pen-like — LZZZ422C2 — 22G — 25 mm — Gravity flowrate 33 ml/min — Vent fitting — Color coding: Deep blue
• Pen-like — LZZZ424B2 — 24G — 19 mm — Gravity flowrate 19 ml/min — Vent fitting — Color coding: Yellow
• With wings & injection — LZZZ318D2 — 18G — 32 mm — Gravity flowrate 85 ml/min — Vent fitting — Color coding: Deep green
• With wings & injection — LZZZ320D2 — 20G — 32 mm — Gravity flowrate 50 ml/min — Vent fitting — Color coding: Pink
• With wings & injection — LZZZ322C2 — 22G — 25 mm — Gravity flowrate 33 ml/min — Vent fitting — Color coding: Deep blue
• With wings & injection — LZZZ324B2 — 24G — 19 mm — Gravity flowrate 19 ml/min — Vent fitting — Color coding: Yellow

Technical specifications

• Intended use: intravenous infusion catheter
• Safety: Passive safety shield
• Stabilization: Integrated stabilization platform
• Flashback: Double flashback technology
• Bevel: Universal back-cut bevel
• Radiopacity: Radiopaque stripes for visualization under X-ray
• Material: Catheter available in FEP
• Biocompatibility: Not made with DEHP, Latex/Natural Rubber
• Connection: Vent fitting
• Available models & sizes: catalogue numbers LZZZ418D2 / LZZZ420D2 / LZZZ422C2 / LZZZ424B2 and LZZZ318D2 / LZZZ320D2 / LZZZ322C2 / LZZZ324B2 with gauges 18G, 20G, 22G, 24G and catheter lengths 32 mm, 25 mm, 19 mm as per model
