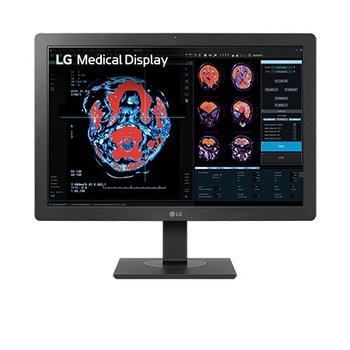

Medical display 24HR513C
medical imagingdiagnostic1920 x 1200

Medical display - 24HR513C - LG - medical imaging / diagnostic / 1920 x 1200
Medical display - 24HR513C - LG - medical imaging / diagnostic / 1920 x 1200
Medical display - 24HR513C - LG - medical imaging / diagnostic / 1920 x 1200 - image - 2
Medical display - 24HR513C - LG - medical imaging / diagnostic / 1920 x 1200 - image - 3
Medical display - 24HR513C - LG - medical imaging / diagnostic / 1920 x 1200 - image - 4
Medical display - 24HR513C - LG - medical imaging / diagnostic / 1920 x 1200 - image - 5
Medical display - 24HR513C - LG - medical imaging / diagnostic / 1920 x 1200 - image - 6
Medical display - 24HR513C - LG - medical imaging / diagnostic / 1920 x 1200 - image - 7
Medical display - 24HR513C - LG - medical imaging / diagnostic / 1920 x 1200 - image - 8
Medical display - 24HR513C - LG - medical imaging / diagnostic / 1920 x 1200 - image - 9
Add to favorites
Compare this product
Go to the LG website for more information

Characteristics

Applications
medical, medical imaging, diagnostic
Resolution
1920 x 1200
Display size
24"
Technology
LCD
Options
high-brightness
Aspect ratio
16:10
Input
HDMI, DisplayPort, DVI
Brightness (cd/m²)

600 cd

Response time

5 ms

Power consumption

Max.: 65 W

Min.: 0 W

Weight

4.4 kg, 7.1 kg
(9.7 lb, 15.7 lb)

Width

574.2 mm
(22.6 in)

Height

382.4 mm, 559.4 mm
(15.1 in, 22 in)

Depth

59.3 mm, 248.2 mm
(2.3 in, 9.8 in)

Description

Product overview
The LG 24HR513C is a 24-inch Clinical Review Monitor designed for medical image review and pathology support. It offers a color-accurate IPS panel and medical-grade calibration features for consistent diagnostic viewing.

Key features
  • 24-inch IPS panel with 2MP (1920x1200) resolution
  • High typical brightness (typ. 600 cd/m²) for clinical viewing
  • Built-in front calibration sensor for reliable color consistency
  • Clinical/pathology viewing modes and daisy-chain support
  • Automatic rotation and ergonomic adjustments


Support & resources
  • User manuals and quick-start guides (multiple languages)
  • Firmware and software downloads (LG Calibration Studio: Server & Client)
  • Calibration and setup documentation for medical deployment
  • Warranty information, product registration and repair request options
  • Product images, datasheet and troubleshooting library


Technical specifications
  • Brand: LG
  • Model: 24HR513C (variants: 24HR513C-B / 24HR513C-B.AEU / 24HR513C-B.AJL)
  • Screen size: 24-inch
  • Resolution: 2MP (1920x1200)
  • Panel type: IPS
  • Typical brightness: 600 cd/m²
  • Calibration: Built-in front calibration sensor; compatible with LG Calibration Studio
  • Intended use: Clinical review / pathology viewing
  • Connectivity/features: Daisy-chain (DisplayPort MST), auto-rotation
  • EAN: Not provided on page
