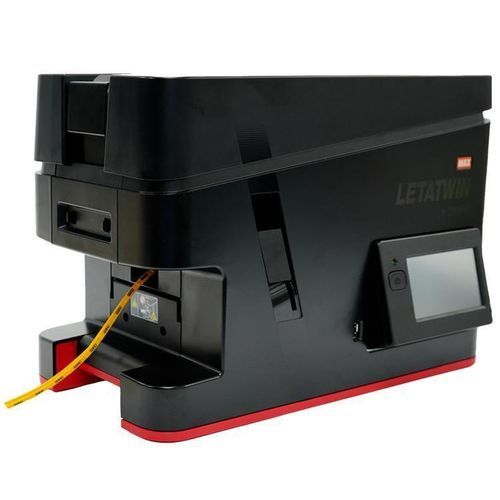

Laboratory labeler LM-3000PRO

high-speedcontinuous-motionadhesive label

Overview The LM-3000PRO cable marker printer delivers fast, flexible identification for cable routing and control panel marking. Designed for high-throughput panel builders and wire harness manufacturers, it supports a wide range of consumables and features an integrated cutter for custom lengths.

Key features

• High-speed printing: up to 80 mm/sec (approximately twice the speed of comparable Letatwin models)
• 300 DPI resolution for clear, durable marks
• Built-in cutter: automatic half-cut and manual full-cut with adjustable depth
• Print width up to 19 mm; material width up to 36 mm
• Thermal transfer printing for long-lasting legibility
• Optional double-sided printing (vertical / reverse)
• Extensive consumable compatibility including Grip Sleeve, Grip Tube, cable tags, conductor markers, heat shrink, terminal block slide plates, PVC tube and self-adhesive tape
• Connectivity: USB, wired LAN and wireless LAN (IEEE802.11 b/g/n; n = 2.4 GHz only)
• Optimized output capacity for typical consumables to support continuous production

Applications

• Cable identification and harness marking
• Terminal block and DIN rail labelling
• Panel wiring and ID labelling
• Heat-shrink marking for component protection

Included software LETATWIN PC EDITOR PRO: connect via USB, wired LAN or wireless LAN; import CSV or use copy/paste from Excel; supports sequential numbering, batch edits and efficient data transfer to streamline labelling workflows.

Consumables (examples)

• Grip Sleeve (patented): secures conductor with flat print area for larger, clearer text
• Grip Tube
• Cable Tags
• Conductor Markers
• Heat Shrink
• Terminal Block Slide Plates
• PVC Tube
• Self-Adhesive Tape

Accessories / What’s supplied

• Ink ribbon (LM-IR3015B) and ribbon cassette
• Reel stand
• Platen rollers (3 types for LM-SL34, LM-SL37 and standard)
• Attachments (6 types for block markers A2009-145, A2009-113/114/115/515/615; Ø1.5–Ø2.0 tubes; Ø0.8 tubes; Ø10.0 tubes; ID plates)
• Quick reference manual and safety guidance
• Power cable and USB cable
• Manual guide and software license

Technical specifications

• Print resolution: 300 DPI
• Material width: 36 mm
• Print width: 19 mm
• Print speed: 80 mm/s
• Print technology: Thermal transfer
• Cutting function: Auto half cut, manual full cut (adjustable depth)
• Typical maximum output: Grip Sleeves 100 m; Tubes 100 m; Tape 5 m; Marker Strips 5 m; Blocker Markers 1,000; ID Plate 20 m
• Supported OS: Windows 11
• Print options: Double sided, Vertical / Reverse
• Weight: 11 kg (excluding accessories and power cord)
• Dimensions: 427 (W) x 256 (D) x 301 (H) mm
• Connectivity: USB, wired LAN, wireless LAN (IEEE802.11 b/g/n) (n = 2.4 GHz only)
• Power supply: AC100-240V 50/60Hz
