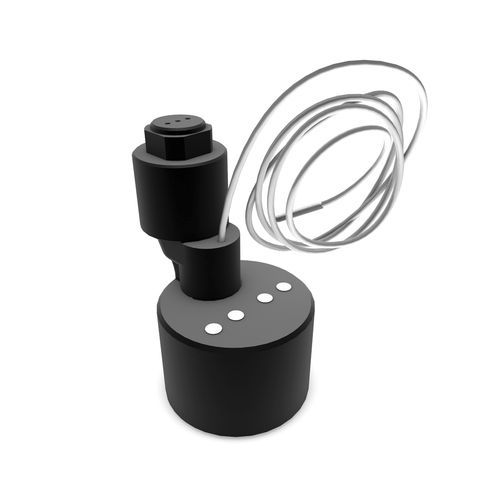

Temperature data logger GMP-TP-F

pressureUSB

Standard data loggers for recording pressure and temperature values. Easy to program and install, no data loss during validation process, multiple users can share the same database simultaneously. Remote factory calibration on users site. Specifications for Temperature and Pressure Data Logger with Flexible Sensor Standard Data Logger GMP TP F + Collects and stores pressure and temperature information in the internal memory + Recover the data through the docking station using XpertLog Software + ITS-90 coefficients are stored in the internal memory + Complies with FDA 21 CFR Part 11 + Network ready: multiple users, centralized, server database, active directory authentication Characteristics Sensor type - Absolute pressure / Temp: 4 wires PT-100 - flexible - 430 mm (17”) - customized - up to 5000 mm (195”) - sensor size - 1.5 x 8 mm (0.06 x 0.315”) - cross section - 1.77 mm² (0.0027 inch²) - body - 0.01 BarA to 5.0 BarA Accuracy - ±10 mbar ≤ 3 BarA @ 130°C; ±15 mbar > 3 BarA @ 130°C; ±15 mbar ≤ 3 BarA @ 23°C; ±30 mbar > 3 BarA @ 23°C; ±0.1°C from -40°C to +140°C Resolution - 0.1 mbar; 0.01°C Memory capacity - 16,000 data points pressure / 16,000 data points temperature Memory type - non volatile Sampling rate - 1 sec to 24 hours Internal clock drift - 4 sec / 24 h @ 23°C Mechanical - - material - Peek 1000 - FDA compliant - enclosure - IP-51 - weight - 57 g (2.01 oz) - height - 69.0 mm (2.72”) Power - 1 x Lithium batteries, 0.35 g/each Lithium content classified UN3091 under IATA DGR section 3.9.2.6 compliant with ICAO/IATA packing instructions 970, user replaceable Battery lifetime - Up to 12 months, based on usage
