Leg recumbent ergometer

supine

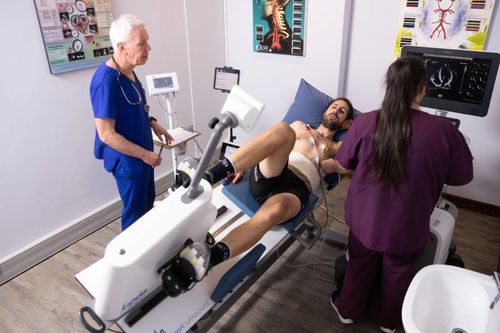

The Angio Imaging with Stress Support Ultrasound (ASSU) is a specialized ergometry system designed for echocardiographic stress testing and cardiovascular assessment. It enables optimal patient positioning for cardiac imaging during exercise, while supporting both seated and supine exercise protocols. With an integrated ergometer providing workloads from 7 to 1000 watts, the ASSU combines precise exercise testing with imaging-focused patient positioning.

The electrically adjustable table features a 45° lateral tilt, allowing the patient to be positioned optimally for cardiac imaging. A removable back segment provides improved access for posterior imaging, while adjustable shoulder and hip supports help maintain patient stability and comfort throughout the examination.

The open frame design allows medical staff to remain close to the patient during exercise and imaging. This provides easy access to the patient while maintaining a stable and supportive position throughout the stress test.

The integrated ergometer delivers workloads from 7 to 1000 watts, independent of pedaling speed. Workload, RPM, exercise time and resistance can be easily configured and monitored via the 7″ touchscreen display. A communication module enables integration with ECG and pulmonary diagnostic systems, supporting comprehensive exercise testing and cardiovascular assessment.

The ASSU also features integrated transport functionality, making it easy to move between locations when required. The system is available in both 230 V and 115 V versions.

Highlights

• Specifically designed for echocardiographic stress testing and cardiovascular assessment
• Optimal patient positioning for cardiac imaging during exercise
• 45° lateral table tilt for improved imaging positioning
• Removable back segment for improved access during posterior imaging
• Supports both seated and supine exercise protocols
• Adjustable shoulder and hip supports for patient stability and comfort
• Open frame design for easy access to the patient
• Workload range of 7–1000 watts, independent of pedaling speed
• 7″ touchscreen for intuitive workload configuration and real-time monitoring
• Compatible with major ECG and pulmonary diagnostic systems
• Integrated transport functionality
• Available in 230 V and 115 V versions
