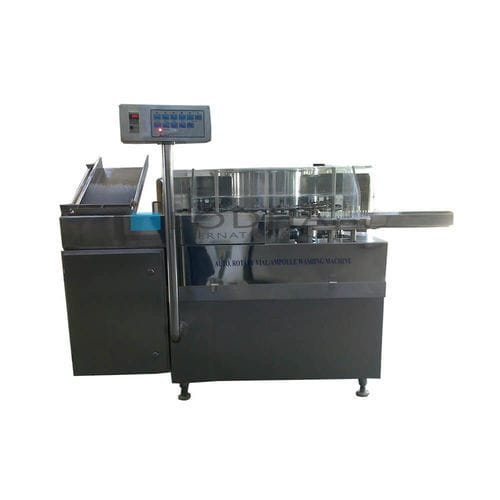

Cleaning machine for the pharmaceutical industry LI-VRW series

for vialsautomatedrotary

Automatic Rotary Vial Washing Machine Model LI-VRW is designed to wash glass vials without contact of non-contact machine parts with glass Vials. Automatic Rotary Vial Washing Machine model is having gripper system to holds the vial from Neck and invert the vials till the washing operation takes place than again after washing process release the vial on outfeed star wheel arrangement in vertical position this ensures positive wash of vials. Our machine model is suitable to wash 2ml to 100ml Glass Vials/ Containers with the help of change parts. Glass Vial feeds through Turn Table to infeed Star Wheel and specially designed Gripper hold the Vial from neck and invert the vial and move it further on rotary moving system for Washing process. LI-VRW model suitable for application in Pharmaceutical & Biotech Industries, The Vials traveling in neck down position above washing Needles and moves along with the Needle bar ensures maximum time for washing once the needle enters in the vial neck. Machine with Standard Six Different Washing Stations each of 6 Needle for optimum Washing and the sequence can be change as per customers specific requirement. This machine model is 0 also having external wash mechanism for optimum washing of Vials. SALIENT FEATURES OF AUTOMATIC ROTARY VIAL WASHING MACHINE: 18 Jets for 6 Internal washing zones 6 Jets for External Washing of Vials All contact parts made of SS 316 material Machine construction in SS 304 Material 10 Cassette of Grippers each having 3 Grippers Suitable for 2ml to 50ml and in special design up to 100ml size
