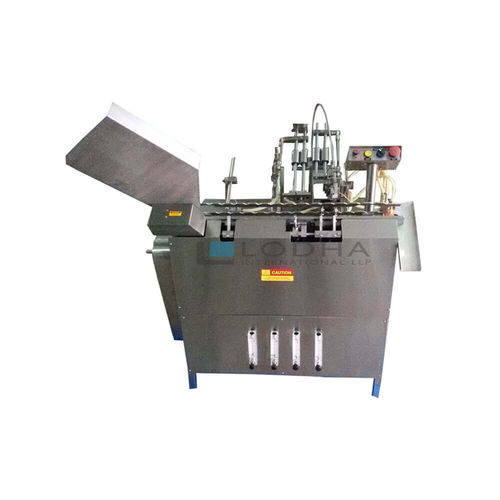

Filling and sealing machine for the pharmaceutical industry LI-AFS

for ampoulesautomatic

Closed Ampoule Filler and Sealer Machine Model: LI-AFS C is uses for filling and sealing of type D pre-sterilized closed ampoules. Machine built on principle of slant travel of ampoules while filling and sealing, to take care of vide variation of ampoule neck dimensions, thicknesses of available standard ampoules. The Filling unit built on Stainless Steel Square pipe frame and totally encompassed with Stainless Steel Coverings, in pleasing matt finish. Further, large opening available at bottom side of the machine for easy cleaning. The pendant type electrical control panel is lifted from machine for ease of operation and safety. Amoule Filling & Sealing Machine is suitable for ampoule filling in pharmaceutical, cosmetic, agriculture and chemical industries. CLOSED AMPOULE FILLING MACHINE SALIENT FEATURES Compact GMP model. Suitable for filling and sealing of type ‘D’ ampoules. All contact parts made from high quality Stainless Steel 316L & other Non-contact parts made from Stainless Steel 304. Minimum change over parts from 1ml to 10ml ampoule size. “No Ampoule – No Filling” system. Ampoule neck centering during gas flushing and filling operations. Possibility of nitrogen gas flushing before, during and after filling. Full accessibility allows easy maintenance. Machine equipped with pre-warming station.
