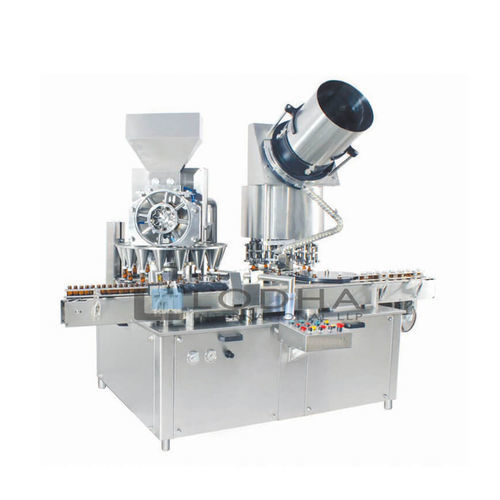

Automatic filling machine LI-DP
rotaryvacuumfloor-standing

automatic filling machine
automatic filling machine
Add to favorites
Compare this product


Characteristics

Operational mode
automatic
Type
rotary, vacuum
Configuration
floor-standing
Product applications
powder
Container type
bottle
Other characteristics
high-speed
Production capacity

Min.: 60 p/min

Max.: 120 p/min

Length

1,700 mm, 2,000 mm
(66.93 in, 78.74 in)

Width

1,000 mm, 1,200 mm
(39.37 in, 47.24 in)

Height

1,800 mm
(70.87 in)

Description

Automatic High Speed Rotary Dry Syrup Powder Filling with Rubber Stoppering Machine Model LI-DP, is suitable for Glass, Plastic, PET, HDPE, LDPE Bottles with maximum speed of 60 to 120 Bottles per minute depending on Powder Fill Volume, Type of Powder, Bottle Diameter and Bottle Neck Diameter. Machine in Stainless Steel Finish with heavy duty frame structure with S.S, Cladding. All parts coming in contact with Powders are made from SS316 Materials as well as HDPE Funnels. The Machine works on proven time-tested Vacuum and Air Systems to Fill powder in Bottle achieving higher speed and higher accuracy. Machine with unique Bottle Lifting and Neck Holding system avoid spillage of powder on bottle shoulder, neck and body keeps bottle clean and also avoid wastage of powder. Machine with complete synchronization of Bottle Infeed Star Wheel, Powder Wheel movement and outfeed Star wheel for smoother operation. Machine with Rotary Bottle Moving system ensures very high-speed powder filing through independent moving funnel along with bottles for greater speed and performance without compromising speed and fill accuracy. Machines with unique vibratory system inside the funnel helps filling of semi free flow type powder at higher speed. SPECIAL FEATURES OF ROTARY DRY SYRUP POWDER FILLING MACHINE WITH RUBBER STOPPERING: No Bottle - No Fill System Rotary Bottle Movement System with Rotary Funnel System Funnel with Unique Vibratory system for filling semi free flow powder at higher speed All contact parts with easy removal system for Cleaning / AutoClaving / Sterilization Machine construction in SS304 material
