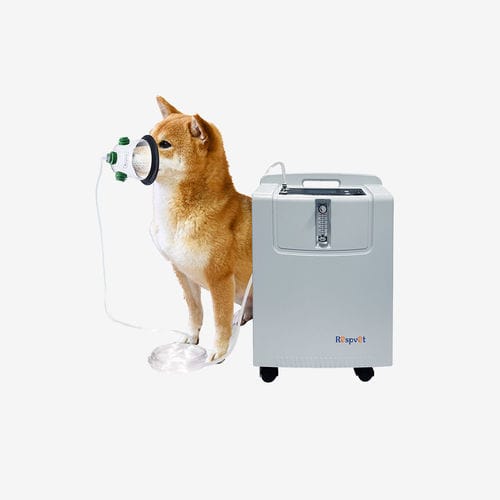

Veterinary oxygen concentrator NW-5KWon castersPSAmultipurpose
Add to favorites
Compare this product
Characteristics
- Applications
- veterinary
- Configuration
- on casters
- Type
- PSA
- Other characteristics
- multipurpose
- Flow rate
Max.: 5 l/min
(1.321 us gal/min)Min.: 0.5 l/min
(0.132 us gal/min)- Oxygen concentration
Max.: 96 %
Min.: 90 %
- Oxygen pressure
Max.: 0.7 bar
(10.153 psi)Min.: 0.4 bar
(5.802 psi)- Noise level
Max.: 40 dB
Min.: 0 dB
- Power
Max.: 300 W
Min.: 0 W
- Length
350 mm
(13.8 in)- Width
280 mm
(11 in)- Height
510 mm
(20.1 in)- Weight
15 kg
(33.1 lb)
Description
Model
NW-5KW
Key Features
Application
Specifications
NW-5KW
Key Features
- Oxygen therapy for surgery, post-operation recovery, ICU and emergency care in veterinary practice
- Pressure swing adsorption (PSA) molecular sieve technology uses ambient air to produce medical oxygen on demand, eliminating daily cylinder exchanges
- Multipurpose unit: supplies oxygen to anesthesia machines, supports postoperative and ICU oxygenation, and provides emergency oxygen
- High outlet pressure suitable for connection to cages and as an anesthetic gas source for small animals under 7 kg (e.g., cats and small dogs)
- Programmable operation with automatic stop based on user-set time and production program
Application
- Mask oxygen therapy: rapid oxygen delivery to hypoxic animals and treatment support for respiratory conditions via mask
- Integration with anesthesia machines: stable, timely oxygen source to ensure safe procedures
- Use with oxygen chambers/cages: supply oxygen to promote recovery, wound healing after surgery, and support growth or burn recovery
Specifications
- Flow rate: 0.5–5 L/min
- Net weight: 15 kg
- Oxygen concentration: 93 ± 3 %
- Dimensions: 350 × 280 × 510 mm
- Sound level: ≤ 40 dB
- Outlet pressure: 0.04–0.07 MPa
- Power consumption: ≤ 300 W
- Supply voltage: AC 110/220/230 V, 50/60 Hz
- Alarms: power failure, high & low pressure, low concentration
- Compatible veterinary cage (medium): 600 × 450 × 450 mm
