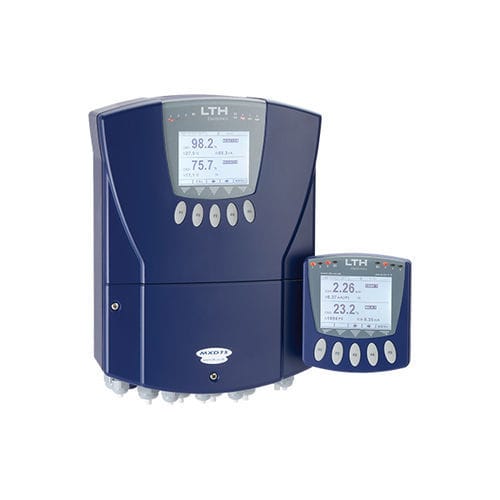

Water analysis analyzer MXD70 series
pHdissolved oxygentemperature

water analysis analyzer
water analysis analyzer
Add to favorites
Compare this product


Tested parameter
pH, dissolved oxygen, temperature, turbidity, conductivity, resistivity, salinity
for water analysis
Other characteristics


MXD70 series IP66 panel or surface mount enclosure option Up to three measurement inputs Can be expanded up to 6 relay outputs and 6 x 4-20mA current outputs Measurement of % saturation, ppm and temperature Optional built in data logging and live trending Auxiliary mA input card - Accepts 0/4-20mA industry standard signal Can be connected to loop powered or self powered transmitters Custom units - up to 5 alpha numeric characters can be selected User scalable over four different measurement ranges Can simultaneously display pH, temperature and electrode mv Accepts pH glass or redox electrodes with differential input for noise rejection Accepts virtually any galvanic or polargraphic dissolved oxygen sensor Automatic sensor cleaning Optional Modbus RS485 communication Displays conductivity, % solution concentration, salinity & temperature Two programmable independent custom curves Displays conductivity, resistivity, ppm and temperature units Measured process & température can be displayed together Compilant with current USP requirements Full ultra pure water température compensation Ultra pure water to solution concentration measurement Auto range, remote range or single range operation The contacting conductivity input allows connection with LTH contacting conductivity cells with a cell constant of K= 0.01, 0.1, 1.0 and 10. It is also possible to use other manufacturées conductivity cells with a cell constant between K= 0.01 and 10. This offers a wide operating range of conductivity measurement from ultra pure water at 0.055pS/cm (Microsiemens/cm) to solution concentration measurements of up to 1000mS/cm (Millisiemens/cm).


20 Pages
