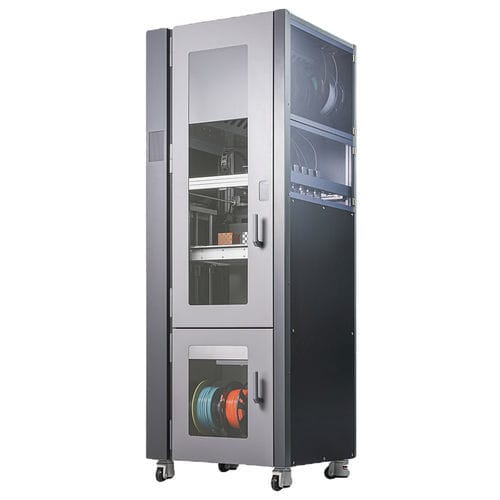

Medical 3D printer LUGO H1

built-inPLA

This 3D printer features six heads, allowing it to use products with different filament thicknesses by inserting them into each nozzle. It can output up to 60A and includes a built-in filament dryer. 6 Heads Six heads make any kinds of 3d printing possible. This is more efficient for advanced printing such as making industrial robots or functional shoes. ex 1) PLA + TPU + PETG (support) ex 2) PETG + PETG (spare) + PLA (support) 1.75 + 2.85 We can choose filament thickness with regard to its Pros. Pros for 1.75mm - Various material range. - Easy to use in any machines. Pros for 2.85mm - Much better for flexible filaments. ex 1) TPU60A(02.85) + TPU85A(2.85) + TPU95A(1.75) + PETGsupport (1.75) 60A Flex 60A is one of the softest material in 3D printing filaments. Printing 60A means printing any flexible materials well. Fila-Dry Drying filament is one of the most important thing in high quality printing. Dry filament significantly reduces oozing and stringing. specifications Dimensions Build volume 320*320*320 mm Machine dimension 660*640*1680 mm Weight 90 kg Display 5 inch Power input 50v 15A (Max 1.2kw) Material Temperature range upto 310℃ 1.75 filament Hard materials (harder than A) 2.85 filament Soft materials (softer than A) Printing head Nozzle material Hardened steel Nozzle diameter 0.5 mm Feeder Direct dual gear Filament detector Runout, Clogged nozzle, etc Competible filament 1.75, 2.85 Replacement Swappable nozzle module Printing properties Printing Technology Fused Filament Fabrication Motion Accuracy 10 microns for XYZ Velocity Upto 400mm/s Bed type Magnetic bed Printing plate Coated spring plate
