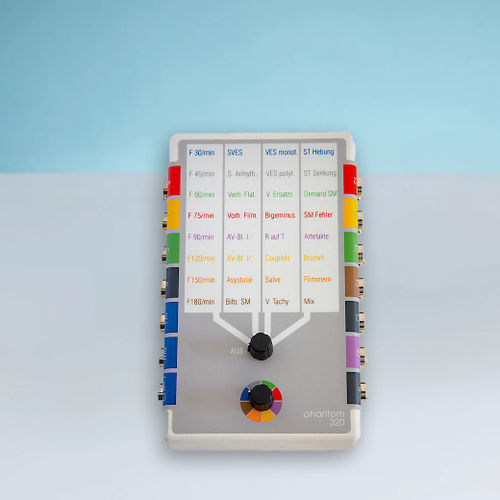

ECG simulator EP-MS59010

for general careheart rateportable

Designed and constructed for the operational needs of the medical field, Phantom 320 provides multiple pathological and normal signals and with different heart rate values. A cyclical sequence of all available signal types is also released to facilitate testing. Tecnical features: Up to 32 waveforms of normal or pathological signs. Simulation of: 8 synusal rhythms, 7 outrentricular speed, 9 ventricular arrhythmias, 3 pacemakers Automatic programme for the cyclic mission for all available signals, of about 17 min in duration. 12 derivatives I, II, III, AVR, AVL, AVF, V1, V2, V3, V4, V5, V6 and 14 banana connections 4 mm and snap, with identification and colour according to DIN EN 60601-2-51 Resolution 8 Bit, sampling frequencies 256 Hz, bandwidth 0-120 Hz Impedance to electrodes: 20 ohms, Iimpedance at exit 1V: 100 ohms Waveforms: 8 sinusals (QRS normal) 30,45,60,75,90,120,150,180 bpm 7 Bituminous rhythms 9 ventricular arrhythmias 3 pacemakers 2 ST (over-and sub-capping) changes ST flat, bottom-up and top-down Bradycardia Tachycardia ECG with artefacts ECG with 50/60 Hz network interference Duration of FP, QRS, RR depending on RR (after Lepeschekin) Power supply: 2 x 1.5-V LR 6 Autonomy of approximately 100 hours of continuous operation Audible alarm at the level of critical charge Environment: Operating temperature 0/40 °C Storage temperature -20/80 °C Humidity: 10 % — 90 % without condensation Pressure: 700/1 500 hPa Dimensions 150 x 100 x 40 mm Weight 400 g, incl. batteries
