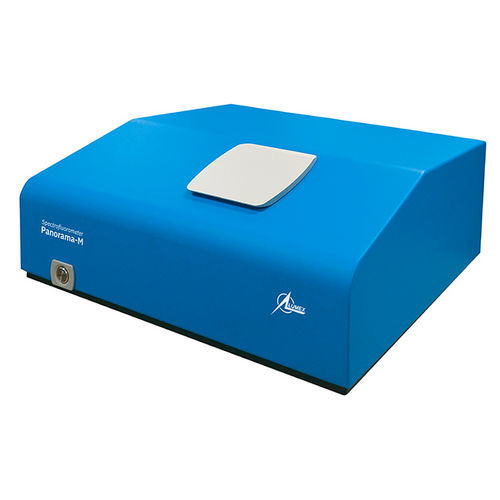

Optical spectrofluorometer Panorama-M

Ramanfor researchxenon

Panorama-M spectrofluorometer is the research grade instrument intended for analysis of luminescence spectra of liquid and solid samples. About Panorama-M spectrofluorometer is intended for research purposes. Two independently controlled monochromators enable functional programming during the measurement process and allow synchronous spectra scanning. A proprietary optical scheme provides a high sensitivity of the instrument. Panorama-M incorporates a Xenon flash lamp as a light source and a PMT as a detector of luminescence. To enhance the measurement accuracy, a correction with respect to the reference and transmission channels are available. features and benefits measurement of luminescence and transmittance characteristic including time-resolved ones; two independent monochromators both in excitation and emission channels; synchronous, asynchronous and two-dimensional scanning modes; study of phosphorescence decay kinetics; long life of the radiation source; thermostating of the sample compartment option. Specifications Spectral range in the excitation and photometrical channels - 190–900 nm Spectral range in the luminescence channel - 190–900 nm Wavelength accuracy - 0.5 nm Sensitivity (Raman band of water) - >900:1 RMS signal-to-noise ratio, 350 nm excitation, excitation and emission slits 6 nm, 2 sec signal averaging time Power requirements - 110/230V, 50/60Hz, 40 V·A Dimensions (LxWxH) - 400х450х200 mm Weight - 15 kg
