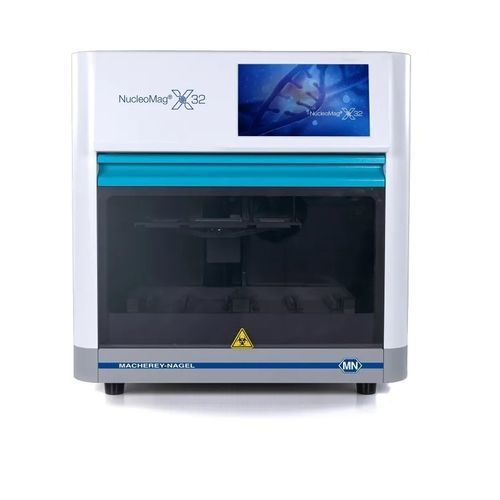

Clinical diagnostic DNA/RNA extractor NucleoMag X32

magnetic bead-based

Overview
The NucleoMag X32 is an automated benchtop platform for magnetic bead-based DNA and RNA purification. It processes 1–32 samples per run with automatic mixing, magnetic bead transfer, washing and elution. The stand‑alone instrument features an internal UV lamp and purification filter system for contamination control and a 7.0-inch colour touch screen for program management. Typical run times range from 20 to 60 minutes depending on the NucleoMag kit and selected protocol.

Key features

• Automated magnetic bead-based DNA/RNA extraction
• Throughput: 1–32 samples per run
• Stand‑alone, space‑saving benchtop format
• Automated mixing, bead transfer, washing and elution
• Internal UV lamp and purification filter system for contamination control
• 7.0-inch colour touch screen (program control)
• Variable mixing speed (10 levels)
• Pre-installed NucleoMag kit scripts; USB support for protocol transfer
• Internal program memory for up to 500 protocols
• Total volume per well: 50–1000 µL
• Elution/lysis temperature: Ambient to 120 °C (including 37 °C)
• Power: 100–240 V AC

Technical data
Application: Automated magnetic bead-based DNA/RNA purification system
Capacity: 1–32 samples
CE certified: Yes
Contamination control: Internal UV lamp; purification filter system
Dimensions (W×D×H): 417 × 410 × 426 mm
Display: 7.0-inch colour touch screen
Elution/Lysis temperature range: Ambient, 37 °C–120 °C
Magnetic bead recovery rate: >95%
Mixing speed: Variable, 10 levels
Program memory: 500 internal programs
Program transfer: Pre-installed scripts for NucleoMag kits; USB flash drive
Total volume per well: 50–1000 µL
Power supply: 100–240 V AC
Weight (unit): 30 kg; Gross weight (packaging): 43 000 g / 94.8 lbs
Packaging dimensions: 680 × 600 × 750 mm

Specifications

• Model: NucleoMag X32
• Throughput: up to 32 samples per run
• Processing time: ~20–60 minutes depending on kit and program
• Volume range per well: 50–1000 µL
• Temperature control (lysis/elution): Ambient to 120 °C (including 37 °C)
• Magnetic bead recovery: >95%
• Mixing: variable, 10 levels
• User interface: 7.0" colour touch screen
• Program memory: 500 internal programs; USB transfer capability
• Contamination reduction: internal UV lamp and purification filter system
• Power: 100–240 V AC
• Unit weight: 30 kg; Gross weight incl. packaging: 43 000 g / 94.8 lbs
• Dimensions (device): 417 × 410 × 426 mm
• Packaging dimensions: 680 × 600 × 750 mm
