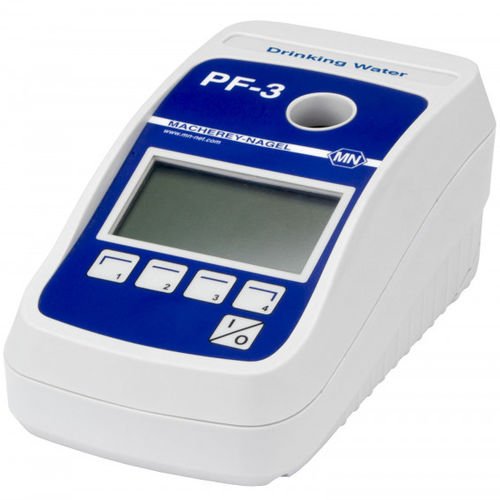

Compact photometer PF‑3

The compact photometer PF‑3 Drinking Water is the smallest member of the MACHEREY‑NAGEL photometer family. The Drinking Water version is especially designed for the need of drinking water analysis. It supports measurements of Chlorine dioxide, Chlorine, pH, Iron, and Fluoride. The handy and compact but strong design makes this lightweight an ideal companion for mobile analysis. Type LED photometer with microprocessor control, self-test and auto calibration Light source LED Optical system LED + interference filters Wavelength 450 nm / 530 nm / 590 nm Wavelength accuracy ± 2 nm, bandwidth at half transmission 10 nm–12 nm Preprogrammed tests NANOCOLOR tube tests, VISOCOLOR ECO tests Cuvette slot Round tubes 16 mm OD External light Insensitive to external light, fast measurements without cuvette slot cover Data memory 50 measurements Display Backlit graphic display, 128 x 64 pixel Auto off Inactive or automatic shutdown after 5 min, 10 min, 15 min, 20 min Internal quality control With NANOCONTROL NANOCHECK 2.0 Operation Self-explanatory menu guidance, plastic foil keypad, test selection via parameter lists Language DE / EN / FR / ES / IT / HU / PL / PT / TR  Interfaces Mini-USB Update Free via internet / PC Operating range 10–40 °C, max. 80 % relative humidity (non-condensing) Power supply 3 AA batteries, rechargeable batteries, USB interface; optional internal accu-pack Housing Shock-resistant; waterproof and dustproof, according to IP 68 Dimensions 170 x 95 x 68 mm Weight 0.5 kg Warranty 2 Years CE certified Yes Scope of delivery Photometer, manual, batteries and certificate Hazardous material No
