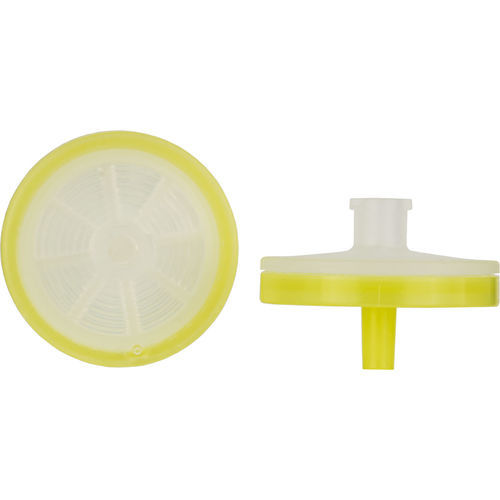

Hydrophilic filter CHROMAFIL

for syringesfor chromatographypolypropylene

Inside the syringe filter a cellulose mixed ester is used as membrane material. The hydrophilic MV membrane is suitable for aqueous or polar solutions solvents. All CHROMAFIL filters are autoclavable (121 °C and 1.1 bar for 30 min)! Hazardous material No Method Filtration Brand CHROMAFIL Type Syringe filter, color coded Housing type Wheel-like shaped housing Hardware Polypropylene (PP) housing with filter membrane Membrane type Cellulose mixed esters (MV) Membrane properties Hydrophilic Membrane diameter 25 mm Membrane pore size 0.45 µm Code type Color coded Color code (top) Colorless Color code (bottom) Yellow Inlet Luer lock (top) Outlet Luer tip (bottom) Sample volume 5-100 mL Recommended application Suitable for aqueous, polar, hydrophilic samples with low particle-load, Suitable for HPLC columns packed with particles > 3 µm, GC, SFC Sterile No Binding capacity (proteins) High Dead volume 80 µL Filtration area 4.91 cm² Storage temperature RT
