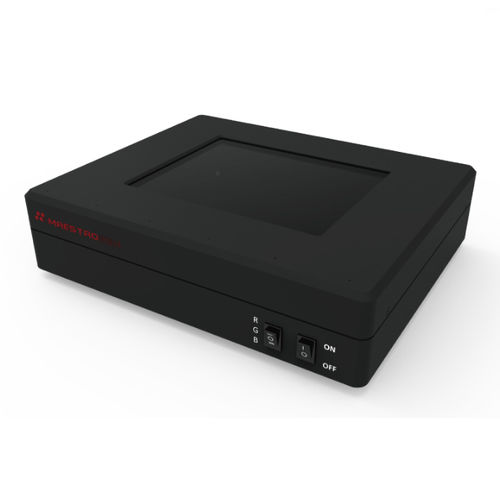

RGB UltraBright LED Transilluminator
With specific filter (optioanl) to be used in front of the camera, people can use three avelengths in the same instrument to perform gel imaging. This makes gel imaging easier.
The coressponding filter is optional and Maestrogen only offer the the two specific types of filter for 470 (B) / 530 (G).
PS. Maestrogen wouldn’t offer the filter for 630(R).
Q Features • Safer to replace UV
•Strong R/G/B LEDs for excitation
•Triple wavelengths embedded in the same transilluminator
•Delta LED arrangement
•High uniformity across viewing area
•Illumination type: LED
•Wavelength (nm): 470nm (Blue), 530nm (Green), 630nm (Red)
•Dimension (mm): 340L*280W*80H
•Viewing surface (mm): 160D*200W
•LED lamps arrangement: Delta matrix
•LED lifetime: 50,000 hrs
•Weight (Kg): 3.6
< 5% CV across the full filter area Sensitivity:
Up to 1 ng nucleic acid Safe:
No damage to you and y ur samples Easy:
Easy for observation and gel cutting Flexibility:
Suit for several kinds of stains and adjustable intensity
The UltraBright LED Transilluminator is designed for viewing stained gels on the laboratory bench, or within gel documentation systems.Light from the LED source inside the instrument producing light with a narrow emission peak centered at approximately 470 nm, effective for the excitation of nucleic acid and protein stains such EtBr, SYBR® Safe, SYBR Gold, SYBR® Green I & II, SYPRO® Ruby, SYPRO® Orange, Coomassie Fluor™ Orange stains, GelGreen, GelRed and Lumitein™ Protein Gel Stain.
