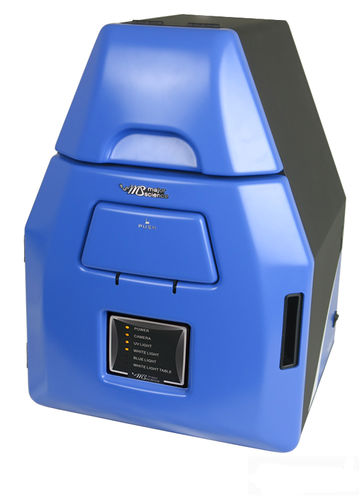

Gel documentation system with CMOS camera SmartView Pro 1100

The SmartView Pro 1100 provides the basic feature and standard operation. Features High resolution 5.0 megapixel monochrome camera (UVCI-1100) PC integration with real-time image Capture/Analysis software included Pull out UV Transilluminator for easy gel cutting Easy installation, ready to use right out of the box Pre-focused lens allows one-touch image capture Variety of optional accessories available UV safety cut-off switch when door is open CE and FCC certification Specification UV Light Built-in drawer type UV Transilluminator 312(302)nm Camera 1/2.5" 5M Pixel Monochrome sensor Pixels Size 2.2μmx2.2μm Lens (Camera) 6mm, F1.2 Camera Video Output 12-bit Filter (Camera) *Ordered separately Optical EtBr Filter / Optical SYBR Green Filter / Yellow Amber Filter / Orange Amber Filter Image Storage PC Software Support Window 10 / 8 / 7 (64bit & 32bit) / XP / Vista Cabinet Pull out, sliding transilluminator Field Of View (WxL) Approx. 10.2"x8.3" (260x210mm) Dimension (WxLxH) Approx. 16.1"x15.9"x22.4" (410x405x570mm) Weight Approx. 54lbs. (24.5kg) Display LED indicator light Viewing Window Built-in UV viewing window Window Filter Built-in Viewing Window Amber Filter 560nm Light White light (standard) Optional Accessory White Light Plate (power built-in) Blue light (power built-in) 470nm Safety CE, FCC PC Connection USB port 1 D Analysis Software Cat. No. MBE-IMG-SW included Saved Image BMP/JPEG/PNG/TIFF, 8 bit; PNG/TIFF, 16 bit Rated Voltage 100-240V~, 50/60Hz, 2A
