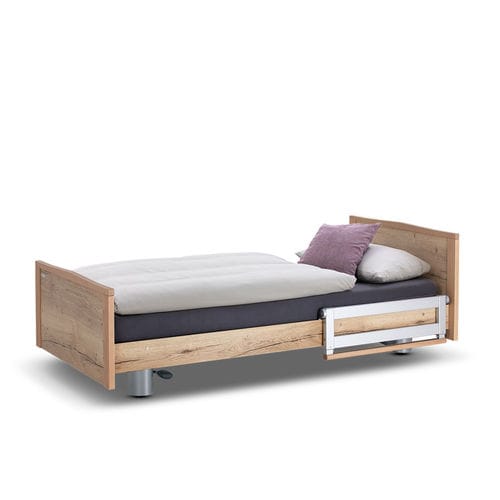

Medical bed IMPULSE
manualbariatricheight-adjustable

Medical bed - IMPULSE - Malsch GmbH - manual / bariatric / height-adjustable
Medical bed - IMPULSE - Malsch GmbH - manual / bariatric / height-adjustable
Add to favorites
Compare this product

Characteristics

Applications
medical
Operation
manual
Patient type
bariatric
Features
height-adjustable, Trendelenburg, reverse Trendelenburg, ultra-low
Component
on casters, with locking wheels
Number of sections
4-section
Height

Max.: 83 cm
(32.68 in)

Min.: 15 cm
(5.91 in)

Weight capacity

200 kg, 300 kg
(440.9 lb, 661.4 lb)

Description

Overview
  • IMPULSE care bed available in multiple undercarriage editions (420/420 LR, 400/400 LR, 500, 400 ZB, XL) designed for fall prevention and adapted patient handling in low‑care, ultra‑low‑care and bariatric applications.


Edition 420 / 420 LR
  • Undercarriage edition 420 with swivelling side rail system at the head end (420 LR: 100 mm double castors).
  • Headboard and footboard design V490 (finish H1180).
  • Low-care bed for fall prevention with concealed castors (LR: 100 mm double castors).
  • Axle brake; central brake for LR versions.
  • Height adjustable 27 cm to 80 cm; 28 cm to 81 cm (420 LR).
  • Safe working load 200 kg.
  • Four-part reclining surface; mattress compensation for the back rest; auto-contour position; integrated bed extension (optional on some editions).
  • Various reclining surface, side rail, headboard and footboard options and finishes.


Edition 400 / 400 LR
  • Undercarriage edition 400 with vertical side rail system (LR: 100 mm double castors).
  • Headboard and footboard design V490 (finish H1180).
  • Low-care bed for fall prevention with concealed castors (LR: 100 mm double castors).
  • Axle brake; central brake for LR versions.
  • Height adjustable 25 cm to 82 cm; 26 cm to 82 cm (400 LR).
  • Safe working load 225 kg.
  • Transfer position; Trendelenburg and Anti‑Trendelenburg positions.
  • Four-part reclining surface; mattress compensation for the back rest; auto-contour and comfort sitting positions.
  • Integrated bed extension available; multiple options for reclining surface, side rails, headboard and footboard; variety of finishes.


Edition 500
  • Undercarriage edition 500 without side rails for ultra-low‑care applications.
  • Headboard and footboard design V480 (finish H1180).
  • Ultra-low care bed for fall prevention with 60 mm double castors.
  • Single brake; height adjustable 15 cm to 75 cm.
  • Safe working load 200 kg.
  • Transfer position; Trendelenburg and Anti‑Trendelenburg positions.
  • Four-part reclining surface; mattress compensation for the back rest; auto-contour and comfort sitting positions.
  • Side rail options, headboard and footboard options and a variety of finishes available.


Edition 400 ZB
  • Undercarriage edition 400 ZB with vertical side rail system at the head end and central brake with directional locking.
  • Headboard and footboard design V490 (finish H1180).
  • Low-care bed for fall prevention with concealed castors.
  • Height adjustable 25 cm to 82 cm.
  • Safe working load 225 kg.
  • Transfer position; Trendelenburg and Anti‑Trendelenburg positions.
  • Four-part reclining surface; mattress compensation for the back rest; auto-contour and comfort sitting positions.
  • Integrated bed extension available; multiple options for reclining surface, side rails, headboard and footboard; variety of finishes.


Edition XL
  • Undercarriage edition XL with swivelling side rail system at the head end and central brake with directional locking.
  • Headboard and footboard design V480 (finish H1180).
  • Bariatric care bed with 100 mm double castors and height adjustment 33 cm to 83 cm.
  • Safe working load 300 kg.
  • Four-part reclining surface; mattress compensation for the back rest; auto-contour and comfort sitting positions.
  • Side rail options, headboard and footboard options and a variety of finishes available.


Notes
  • Features marked with an asterisk (*) are optional.


Technical specifications
  • Product family: IMPULSE care bed (editions: 420/420 LR, 400/400 LR, 500, 400 ZB, XL).
  • Height adjustment ranges by edition: 15–75 cm (Edition 500); 25–82 cm (Editions 400 / 400 ZB); 27–80 cm (Edition 420); 28–81 cm (Edition 420 LR); 33–83 cm (Edition XL).
  • Castors: concealed castors (several editions), 60 mm double castors (Edition 500), 100 mm double castors (LR editions and XL).
  • Brakes: axle brake / single brake (some editions); central brake; central brake with directional locking (400 ZB, XL).
  • Safe working load: 200 kg (Editions 420, 500); 225 kg (Editions 400, 400 ZB); 300 kg (Edition XL).
  • Reclining surface: four-part reclining surface (standard or optional depending on edition); mattress compensation for back rest; reclining surface options available.
  • Positions: transfer position (selected editions); Trendelenburg and Anti‑Trendelenburg (selected editions); auto-contour position; comfort sitting position.
  • Bed extension: integrated bed extension available on certain editions.
  • Side rails: vertical or swivelling side rail systems depending on edition; side rail options available.
  • Headboard/footboard designs and finishes: V490 or V480 designs with finish H1180 shown; various options and finishes offered.
  • Target use: low‑care, ultra‑low‑care and bariatric applications for fall prevention and adapted patient handling.
