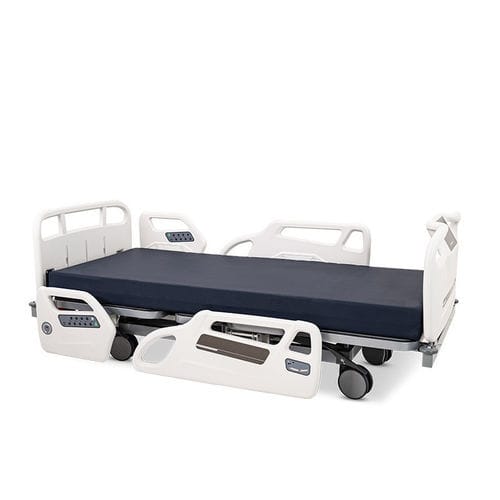

Intensive care bed HB 4010

for acute careelectricTrendelenburg

Overview
The multifunctional hospital bed HB 4010 is engineered for continuous use in clinics and hospitals. Plastic components and covers enable efficient cleaning and support hygiene protocols. Modern control technology simplifies caregiver operation and improves patient positioning. An angle indicator integrated into the side rail assists precise adjustment of the backrest.

Key design benefits

• Plastic components and covers for easy cleaning and high hygiene standards
• Durable materials suitable for frequent patient turnover
• Modern control system for intuitive operation
• Angle indicators integrated in side rails for precise positioning

Adjustment functions

• Low transfer position for safe patient transfer, combined with side-rail mobilisation for independent or assisted transfers
• Work/adjustment heights to improve staff ergonomics during care
• Comfort seat / automatic chair position to enhance patient comfort
• Trendelenburg and reverse-Trendelenburg positions

Reclining surface and side rails
The HB 4010 provides a four-part sleeping surface with an optional ABS surface panel. Plastic side rails feature one-hand operation for quick release and easy cleaning; the head-end rail integrates a clear control panel. Angle displays are integrated into all side-rail elements, enabling precise adjustment of backrest and thigh support.

Integrated bed extension
The integrated telescopic bed extension adjusts without tools via a quick-release mechanism. The system extends in two stages (10 / 20 / 30 cm) while all bed functions remain fully usable. For 20 cm or 30 cm extensions an optional mattress insert is recommended.

Features and options (table)
Column 1:

• Hospital bed for acute care
• 150 mm twin castors
• Central brake with fixed direction
• Height adjustment 34 cm – 82 cm
• Safe working load 250 kg
• Transfer position
• Trendelenburg / reverse-Trendelenburg position
• Four-part sleeping surface
• Backrest mattress compensation

Column 2:

• Fowler's position
• Automatic chair position
• Integrated bed extension
• ABS sleeping surface
• Plastic side rails with one-hand operation
• Angle displays for backrest and sleeping surface
• Tool-free removable head and foot boards
• Optional 5th castor

Technical specifications

• Model: HB 4010
• Safe working load: 250 kg
• Height adjustment range: 34 cm – 82 cm
• Castors: 150 mm twin castors (central brake with fixed direction)
• Sleeping surface: four-part (ABS sleeping surface option)
• Positions: Transfer, Fowler's, automatic chair position, Trendelenburg / reverse-Trendelenburg
• Side rails: Plastic side rails with one-hand operation; integrated control panel; angle displays for backrest and sleeping surface
• Integrated bed extension: telescopic in two stages (10 / 20 / 30 cm) with quick-release; optional mattress insert recommended for 20/30 cm extension
• Removable head and foot boards: tool-free
• Optional extras: 5th castor
