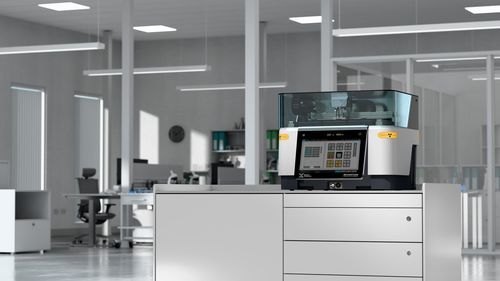

EDXRF spectrometer Revontium

XRFenergy dispersive X-ray fluorescencefor metal analysis

Overview
Revontium is a benchtop energy-dispersive XRF analyzer designed for demanding laboratories requiring fast, repeatable elemental analysis in a compact tabletop format. It combines a small footprint (0.4 m²), high sample throughput and low long-term drift for consistent results across high-volume workflows.

Key selling points

• Detection speed up to 4× faster than traditional systems; throughput up to 20 samples per hour.
• Improved long-term stability with significantly reduced drift (ZETA technology).
• Increased sample capacity: flexible tray holds up to 32 samples (Ø52 mm), boosting capacity by ≥60%.
• Compact footprint: fits on busy lab benches (0.4 m²).
• Low total power consumption: approximately 400 W.

Full capacity (sample handling)

• Handles up to 32 samples per run using a flexible tray (52 mm sample diameter).
• Cover with over-pressure function to protect samples from dust and contamination.
• Compact design easily integrates into existing benches without infrastructure changes.
• Robotic arm with camera enables walk-away automation and safer manual interventions.

Operational flexibility

• Measure solids, liquids and powders in a single batch; switch sample types with Omnian screening software.
• Support for wide-range oxide analysis using a single calibration (WROXI-CRM).
• Up to ~25% lower operational costs versus WDXRF, AAS or ICP for comparable workflows.

Easy operation

• Intuitive 15-inch touchscreen with SuperQ software; typical operator training under ~30 minutes to obtain quality data.
• Built-in uptime intelligence and remote monitoring via Smart Manager for proactive maintenance.
• No acid digestion required for many workflows, reducing operator risk compared with ICP.

Accessories & software
Revontium is supported by calibration standards, consumables and software packages to cover routine screening and quantitative analysis. Typical options include ADPOL and WROXI certified reference materials, RoHS/WEEE and TOXEL standards, SuperQ advanced processing and Omnian screening software. Smart Manager enables daily remote monitoring and proactive maintenance.

Technical specifications

• Dimensions (W x D x H): 70 x 63 x 38 cm (56 cm height with sample changer).
• Power supply: 100–240 V; power consumption ~400 W.
• Internal computer with Windows OS; 15-inch touchscreen UI; 4 USB ports.
• Sample holders: up to 52 mm diameter; tray capacity up to 32 samples.
• Sample handling: robotic arm for sample changing; cover with over-pressure.
• Sample types: solids, liquids and powders measured as-is — no acids required for many analyses.
• X-ray excitation range: 4–60 kV.
• Sensitivity: 50 µm thin window for enhanced light-element sensitivity.
• Detector: up to 6 million photons per second at 50% dead time.
• Drift control: very low drift with Zero-Evaporation Technology Advancement (ZETA).
• Operating temperature: 10–30 °C. Manufactured in Eindhoven, the Netherlands.
