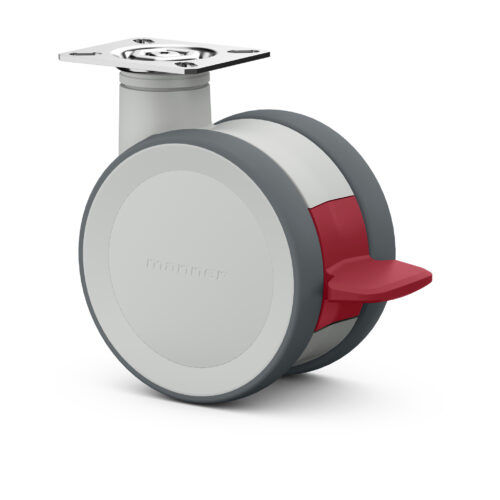

Wheel with brake TWL-J-S-100 GP/K H
polyamidepolypropylene

wheel with brake
wheel with brake
Add to favorites
Compare this product


Characteristics

Options
polyamide, polypropylene, with brake
Load capacity

100 kg
(220 lb)

Wheel diameter

100 mm
(3.937 in)

Description

The high-quality Twist twin wheel castor is load-bearing and very sturdy yet easy to manoeuvre. Its special feature is the intuitive brake pedal, which clearly shows the status of the locking system and is easy to use. Two different heights make it easier to meet customer- and device-specific requirements. The timeless and clinical appearance of the Twist castor looks hygienic and high quality. The standard colour of the castor is light grey (RAL 7035) with a red pedal. Customer-specific and special colours are also available for orders of larger quantities. Technical data Hardness of the tread (shore A):95 Wheel width (mm):20 Bearing type:Ball bearing Overall height (mm):127 Fitting:Rectangular top plate Swivel radius (mm):113 Weight (kg):0.772 Fork material:Plastic Plate length x width (mm):77X67 Hole centres length x width (mm):61/51X50/42 Fastening hole diameter (mm):8 Brake type:Total-stop brake Brake control:Individual Color:Light grey

Catalogs

No catalogs are available for this product.

See all of Manner Oy‘s catalogs

Other Manner Oy products

Twist
