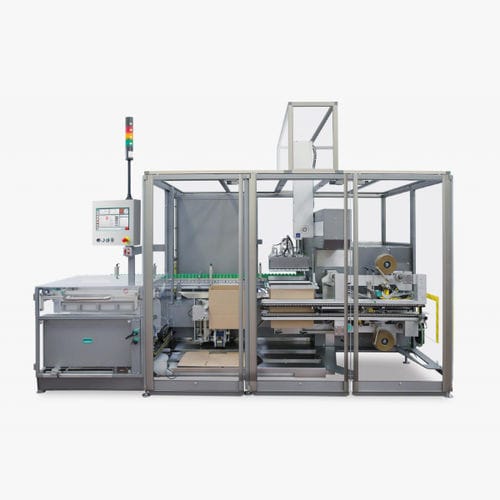

Automatic packaging system MCV
verticalfloor-standingcompact

automatic packaging system
automatic packaging system
automatic packaging system
automatic packaging system
automatic packaging system
Add to favorites
Compare this product


Characteristics

Operational mode
automatic
Type
vertical
Configuration
floor-standing, compact
Production capacity

12 p/min

Length

Max.: 300 mm
(11.81 in)

Min.: 100 mm
(3.94 in)

Width

Max.: 400 mm
(15.75 in)

Min.: 140 mm
(5.51 in)

Height

Max.: 300 mm
(11.81 in)

Min.: 135 mm
(5.31 in)

Description

These machines packs loose products which have to be kept upright, e.g. various types of jars or bottles, as well as traditional cartons and squared bundles, making it a great solution for the cosmetic sector. Compact, ergonomic, reliable and sturdy, it is innovative and versatile thanks to the use of robotised solutions which significantly enhance performances in terms of speed and flexibility. All operations are fully automated, performed by brushless motors and controlled by a Siemens 677 PC; The case is fed into a vertical magazine located in an ergonomic position on the front of the machine. High loading capacity; The pick-and-place system performs positive case pick up and erection; The product to be packaged, fed on the infeed belt, arrives underneath the pick-and-place head, which picks it up and inserts it directly into the case, with a vertical motion; Each pick up operation is checked during every cycle to guarantee that the final composition of the case is correct. Pick-and-place by grippers can also be provided.
