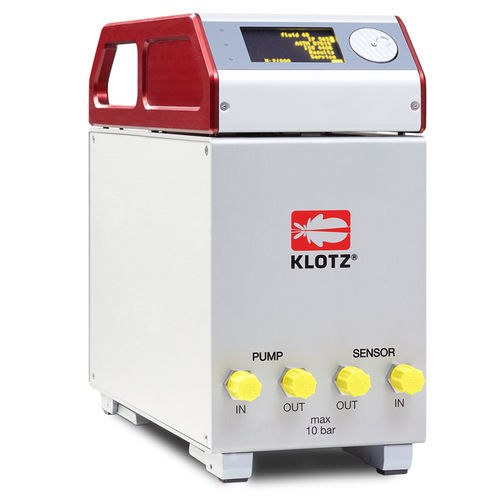

Laser particle counter PCSS fluid lite

for water treatmentonlinebattery-powered

The particle counting system PCSS fluid lite is used for counting particles in fluids from pressure pipes and out of bottles. The number of particles is displayed, stored and transmitted to a computer in 16 size classes. The laser sensor LDS 45/50 is used for contamination control of oils, diesel and kerosene. For the contamination x (drinking water, fluids in the pharmaceutical and chemical industry) an LDS 30/30 is available as an option. Areas of application: Contamination control of fluids (bottle samples or samples from pressure pipes); testing of diesel and kerosene; contamination control of transmission fluids. The measuring device is for online measurements, for measurements in the lab, and due to its compact design suitable for mobile use on site. Option: battery operation Technical Specifications: Formulas freely definable Following standards can be applied: ISO 4406 (91/99), NAS 1638, GB 5930-86; GJB-420A-96, GJB-420B, GOST 17216-71, SAE-A6D, SAE-749D, SAE-AS4059E or 16 freely definable size channels (max. 3 formulas can be selected at the device, download and parameterizing via particle X.X or via the evaluation software “Protrend”) Measured value output: PC, display, printer, threshold output, data memory for 600 measurements Software: When using the evaluation software “Protrend” on the PC, several methods with up to 32 size classes can be applied. The presentation of measurements is possible as table and diagram (with Excel export) Data memory for 600 measurements DPS pump: Displacement volume: 10 ml Flushing-measuring volume: 10–1000 ml Inlet pressure: 10 bar; Option: DMV up to 315 bar Pump in suction or pressure mode through patch field
