Cremation incinerator G-16

for general applicationsfor medical wastewaste

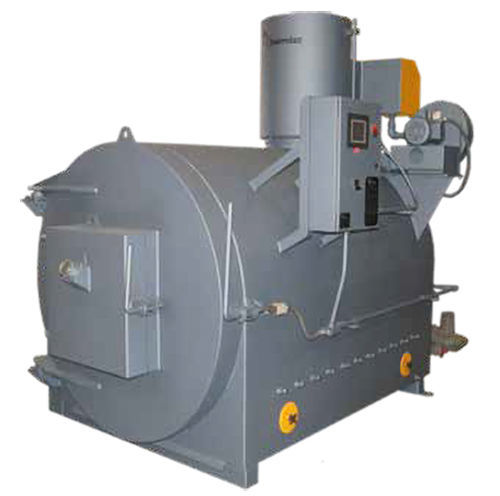

The Thermtec G-16 is a waste incineration system engineered to process larger waste volumes while maintaining a compact footprint. It is available in configurations for general or pathological waste and operates as a batch-loading system with touchscreen PLC controls.

Key features

• Speed: 150 lbs / 68 kg per hour
• Maximum load capacity: 750 lbs / 340 kg
• Controls: Touchscreen PLC
• Batch load operation
• Optional upgrade for 1 second retention time available
• Configurations available for General or Pathological waste

Drawings & images

• General arrangement / GA drawing available (G-16 GA drawing)

Technical specifications

• Safe Load Capacity: 750 lbs / 340 kg
• Throughput Rate: 150 lbs / 68 kg per hour
• Emission residence time: up to 1 second
• Overall Width: 76" / 1.93 m
• Overall Height: 97" / 2.46 m (without stack)
• Overall Length: 114" / 2.89 m
• Weight: 15,493 lbs / 6,619.27 kg
