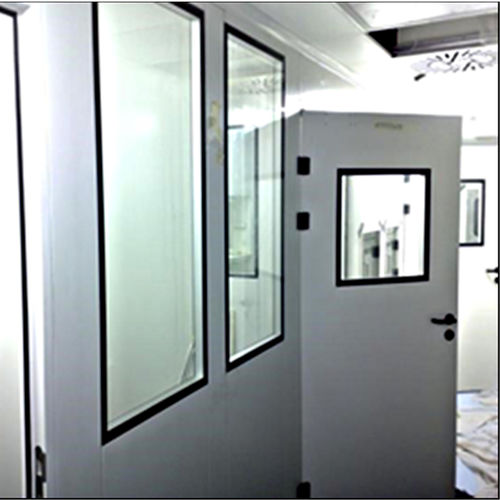

Clean room door DL3

for the pharmaceutical industryswingstainless steel

DOOR FRAME The doorframe is made of Steel Alloy (Cold Roll Metal Sheet) Rubber gasket is installed in the doorframe to ensure air tight SURFACE TREATMENT Powder coated with color requested by customer. DOOR LEAF 50mm thick. 3 layer bending edge Opening double glaze clear class window size is equal to customer requirement, infill with desiccant to prevent condensation. FACINGS 1.5mm thick cold roll metal sheet with a PE roll coating finish, color-according to customer requirement. CORE Rock Wool Slab, Density 100kg/m3 with fire rating >1hour ADHESIVE Rebon YB2002 (resin) mixed with YB8001 (Hardener) Epoxy Past Adhesive Mixing Ratio, YB2002:YB8001=4:1 DOOR ACCESSORIES Provided “ROCK“ lever handle lock, a set of “ROCK” 4 inches stainless steel hinges and “GEZE” door closer
