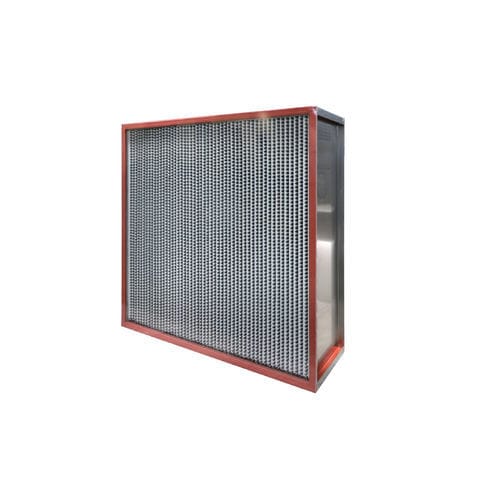

HIGH TEMPERATURE RESISTANT HEPA FILTER WITH SEPARATOR
Aluminum separator, optional flangeless, single or double flange
Flange thickness 20mm
Ultrafine glass fiber is used
Optional product’s temperature resistance (180°C, 250°C)
Imported stable performance sealing rubber with low release is used.
Efficiency: 99.95% (H13)、99.995% (H14)
High temperature resistant hepa filter suitable used in industries with high temperature purifying facilities requirement, such as high temp sterilization tunnel in pharmaceutical industries, ultra clean furnace, ventilation system with fireproof or high temperature resistant requirements.. While medium efficiency filter is applicable to automotive painting booth.
Continuous Operating Temperature - : - Max. 350°C
Operating Relative Humidity - : - ≤100 (%RH)
Media Material - : - Fiberglass
Frame Material - : - Galvanised Steel / Aluminium / Stainless Steel
Frame Thickness - : - 80mm, 150mm, 220mm, 292mm
Frame Header - : - Non-Header / Single Header / Double Header (Thickness: 20mm)
Efficiency - : - H13, H14 (EN1822:2009)
Separator Material - : - Corrugated Aluminium
