Bone grafting instrument kit B1

dental implant surgerydental surgerycustomizable

Overview
The B1 Scraper is a reusable bone scraper designed for bone matrix harvesting in guided bone regeneration (GBR) procedures. It provides precise control and is available in multiple blade diameters and angulations to suit diverse clinical needs. Constructed from Ti Gr5 and surgical-grade stainless steel. Compatible with applicators from the same product family (Supertack, Specialist, TuffTack).

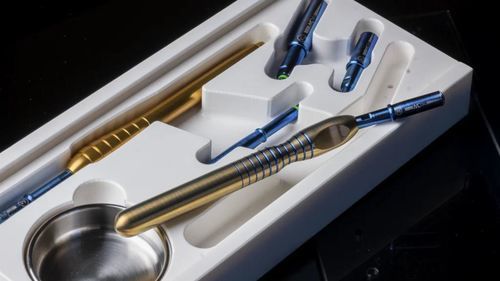

Surgical set composition

• Medical-grade polymer box compatible with class B steam autoclaves
• Asymmetrical anodized aircraft aluminum applicator and scraper M
• Anodized aircraft aluminum applicator and scraper M
• Scraper with 360° straight blade S and XL
• Asymmetric scraper with 360° blade XL
• Tray for collecting bone or biomaterials

Features

• 360° razor-sharp cutting blade enabling efficient bone scraping
• Blades manufactured in surgical stainless steel
• Body components made from Ti Gr5 and premium surgical stainless steel
• Reusable modular design — blade and components replaceable individually
• Can be cleaned and re-sterilized up to 10 times while preserving functionality
• Multiple blade diameters and angles available for different clinical scenarios
• Three main components: applicator (Supertack, Specialist, or TuffTack), blade, and reservoir

Frequently Asked Questions (selected)

• What material are the blades made of? The blades are made of surgical stainless steel.
• Is the B1 Scraper a single-piece device? No. It consists of three parts: applicator (Supertack, Specialist, or TuffTack), blade, and reservoir.
• Can I replace the blade without changing the entire scraper? Yes. The blade and other components are replaceable individually.
• Does the blade have only one cutting edge? No. The blade is 360°, allowing use of all cutting edges by rotating the reservoir.

Characteristics / technical specifications

• Denomination: B1 Scraper
• Materials: Ti Gr5 (titanium grade 5), premium surgical stainless steel; blades: surgical stainless steel
• Blade type: 360° cutting blade (razor-sharp)
• Reusable: designed for multiple uses; can be cleaned and re-sterilized up to 10 times
• Components: applicator (Supertack / Specialist / TuffTack), blade, reservoir
• Surgical set reference: 5 Scraper set (cod. 572520)
• Packaging: medical-grade polymer box compatible with class B steam autoclave sterilization
• Applicator material options: anodized aircraft aluminum (asymmetric and symmetric variants)
• Clinical use: bone matrix harvesting for GBR procedures
