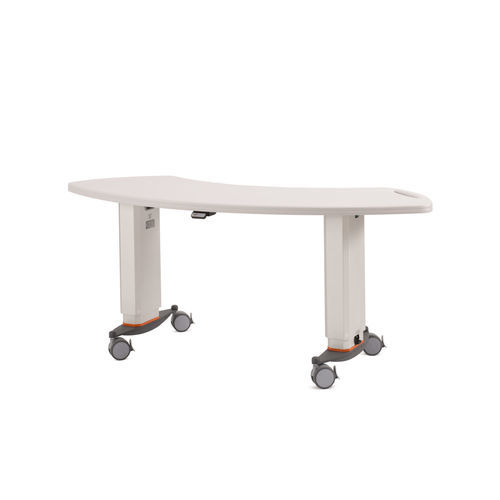

Electric ophthalmic instrument table MD-3V

on castersmobileheight-adjustable

Product description
Ophthalmic table MD-3V is designed to carry three ophthalmic instruments. The ergonomic tabletop shape provides easy access to each device and optimises space in the examination room. Tabletop dimensions are 1485 × 430 mm; vertical travel is 300 mm with a working height range of 608–908 mm. The tabletop is MDF varnished with polyurethane coating (RAL 7047) and the base is powder-coated steel (RAL 7024) with 4 lockable casters Ø75 mm.

Regulatory
This is a medical device. Use it in accordance with the instructions for use or the label.

Technical specification:

• Model: MD-3V
• Designed to carry 3 ophthalmic instruments
• Tabletop dimensions: 1485 mm × 430 mm
• Working height range: 608 mm – 908 mm (vertical travel 300 mm)
• Maximum load: 90 kg
• Tabletop: MDF with polyurethane coating (RAL 7047)
• Electric column: MDT multi-voltage anodised aluminium
  • Input: 110/230 V AC (±10%), 50/60 Hz
  • Power max (without installed devices): 80 VA
  • Power consumption (with installed devices): 3 A (230 V AC), 6 A (110–115 V AC)
  • Maximum power load for installed devices: 450 VA
• Electrical connectors: 2 × IEC C13 sockets
• Supplied cables: 1 × 2.5 m UniSchuko (grey), 1 × 0.8 m C13/C14 (black)
• Base: steel, powder coated RAL 7024 with 4 lockable casters Ø75 mm
• Standard compliance: EN 60601-1:2006 — Class I, Type B; EC Declaration of Conformity provided

Options

• Special shelves
• Dedicated keyboard drawer

* tolerance (+/-) 10 mm, **5 kg, ***1 kg
