Trial frame lens set PL-232

Short description

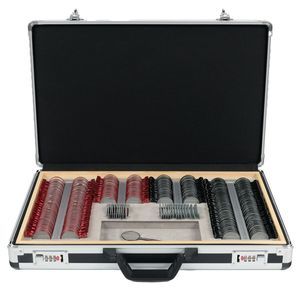

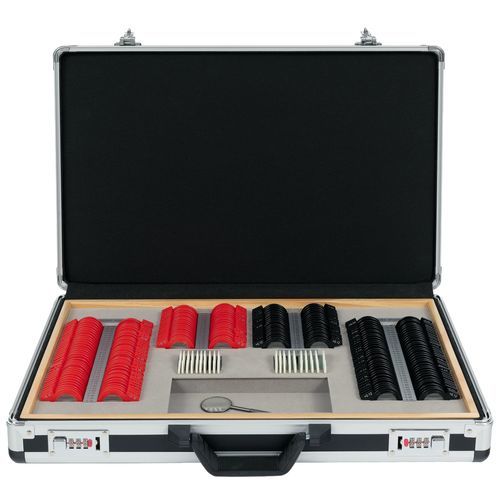

All lenses are made of mineral glass (Ø25 mm) mounted in ABS rims (Ø38 mm). Cylindrical powers are clearly marked on each lens. The complete set is supplied in a portable carry case for secure storage and transport.

Regulatory note
This is a medical device. Use it in accordance with the instructions for use or the label.

Spheres (34 pairs concave & 34 pairs convex)

• 0.12 D
• 0.25 D to 4.00 D in 0.25 D steps
• 4.50 D to 7.00 D in 0.50 D steps
• 8.00 D to 16.00 D in 1.00 D steps
• 18.00 D, 20.00 D

Cylinders (19 pairs concave & 19 pairs convex)

• 0.12 D
• 0.25 D to 3.50 D in 0.25 D steps
• 4.00 D, 4.50 D, 5.00 D, 6.00 D

Prisms (10 prisms Δ)

• 1.0 D
• 2.0 D
• 3.0 D
• 4.0 D
• 5.0 D
• 6.0 D
• 7.0 D
• 8.0 D
• 9.0 D
• 10.0 D

Accessory lenses (10)

• BL Occluder (x2)
• PH Pinhole (1.0)
• PH Pinhole (1.5)
• SS Stenopeic Slit
• MR Maddox white
• FL Frosted Lens
• PL Plano Lens (0 D)
• GF Green Filter
• RF Red Filter
• CC Cross Cylinder (-0.50 D) with handle grip

Packing

• 1 box; 610 x 410 x 100 mm

Technical characteristics / specifications

• Product name / model: PL-232
• Lens material: mineral glass
• Lens diameter: Ø25 mm
• Rim material: ABS, rim diameter Ø38 mm
• Cylinders: clearly marked on lenses
• Number of sphere pairs: 34 concave (-) + 34 convex (+)
• Number of cylinder pairs: 19 concave (-) + 19 convex (+)
• Number of prisms: 10 (1.0 D to 10.0 D as listed)
• Accessory lenses included: 10 (as listed above)
• Storage: portable carry case
• Packing size: 610 x 410 x 100 mm
• Medical device: yes (follow instructions for use / label)
