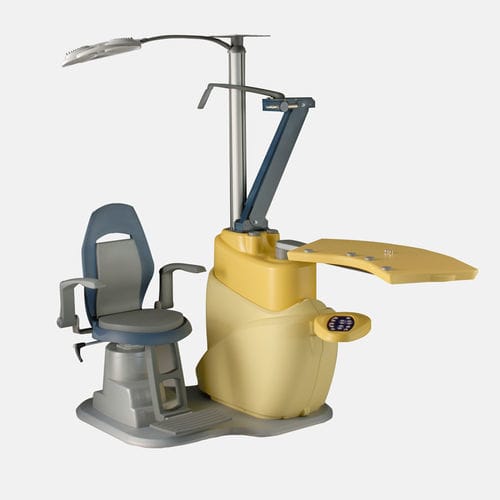

Ophthalmic workstation EDGE CO.

with chairwith lightcompact

Refraction unit with fixed table for 2 instruments. Table lock system in all positions. Column with adjustable led lamp and projector support. Available with 3 different control panel consoles: “compact” no drawer (code 10.130.00), “elegance” with 1 drawer and trial lens tray (code 10.130.01), “highline” with 3 drawers and trial lens tray (code 10.130.03). Digital control panel. Hand instruments support. Counter balanced phoropter arm (optional code 15.901.00). Manual phoropter arm module (optional code 15.130.00). Available version with up/down movement of the instruments table and combined patient chair rotation system suitable for visiting patients in wheelchairs also. Patient chair not included (any chair in the price list can be combined). A left-handed version is also available. Power supply 230Vac 50Hz - (230Vac 60Hz - 110Vac 60Hz) Power consumption 700W Auxiliary outputs 230Vac 50Hz 200W - (230Vac 60Hz - 110Vac 60Hz) Working table voltage 3-12Vac 230Vac 50Hz 200W - (230Vac 60Hz - 110Vac 60Hz) Medical Devices Directive 93/42 /CE and following modifications Machinery Directive 2006/42/CE and following modifications Low Voltage Directive 2006/95/CE and following modifications Electromagnetic Compatibility Directive 2004/108/CE and following modifications
