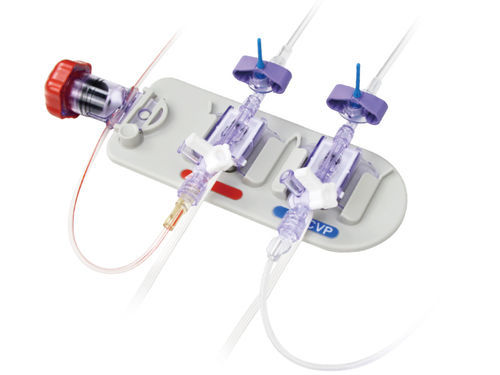

Pressure transducer

disposable

IBP Disposable Transducers are a fully closed, needleless blood-sampling system designed for invasive blood pressure monitoring and safe blood collection in critical care and surgical environments. The system integrates a closed blood reservoir, color-coded pressure tubing, an ergonomic one-handed flush device and a three-way needleless valve to reduce infection risk and measurement errors.

Key Features

• Color-coded pressure tubing: Minimizes tubing-connection and medication errors and simplifies line management to improve clinical workflow.
• Closed blood reservoir: Fully closed design prevents microorganism ingress and adhesion on tubing walls, reducing cross-contamination; rotatable wide-base reservoir supports standardized operation to help prevent air embolism.
• High-performance flush device: One-handed operation with tactile feedback; rapid post-collection flush clears residual blood at ~1 ml/s to save time and reduce pressure-measurement artefacts.
• Needleless three-way valve: Enables safe, needleless blood sampling for improved safety and efficiency; manufactured from premium silicone for easy cleaning and disinfection.
• Compact mounting plate & pole clamp: Small footprint mounting options for flexible placement at bedside or in procedure rooms.

Applicable Departments

• Anesthesiology, ICU, CCU, Cardiac Catheterization Lab, Cardiology, Cardiac Surgery, Neurosurgery, Transplantation and other critical care or surgical departments.

Technical Specifications

• Connector options (compatibility dependent): 4-pin, 5-pin, 6-pin and 7-pin (round or square variants as required).
• Cable/assembly lengths available: 1 m, 1.5 m, 1.58 m.
• Tubing: Red pressure tubing, single channel.
• Infusion rate (nominal): 3 ml/h (±1).
• Flush performance: Rapid flushing of residual blood ~1 ml/s.
• Design: Fully closed blood reservoir with rotatable base to reduce contamination and lower air-embolism risk.
• Three-way valve: Needleless blood sampling; premium silicone material for cleaning and disinfection.
• Packaging & shelf life (standard): 1 pcs / bag, 30 pcs / box; sterilized; 2 years shelf life.
• Ordering codes by compatibility:
  • Abbott — connector: 6-pin (round) — Order Code: XA103R222
  • UTAH — connector: 4-pin (square) — Order Code: XB103R222
  • Edwards — connector: 6-pin (round) — Order Code: XC103R222
  • BD/Ohmeda — connector: 4-pin (round) — Order Code: XD103R222
  • Argon/MAXXIM — connector: 5-pin (round) — Order Code: XE103R222
  • B.Braun — connector: 4-pin (round) — Order Code: XF103R222
  • PVB/SIMMS — connector: 5-pin (square) — Order Code: XG103R222
