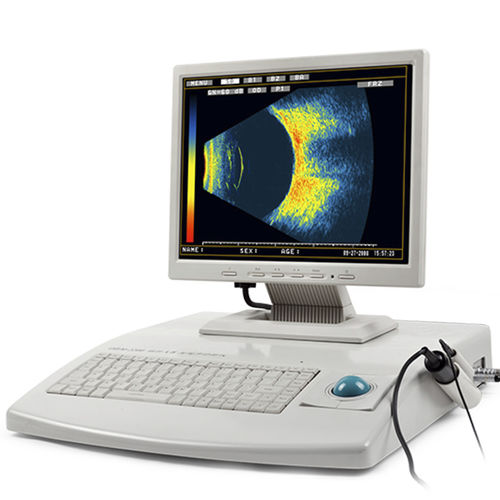

On-platform, tabletop ultrasound system ODM-2200

for ophthalmic ultrasound imagingB/W

B-Scan Scanning method: mechanical sector scan. Gain control: 98dB. TGC: -30dB – 0 dB dynamic, manually adjusted (5 scopes). Display mode: B, B+B, B+A, A. Scanning scope: depth 34mm-60mm, scanning angle: 53º. Dynamic review: 5.6sec/56 images, single or multiple. Gray scale: 256. Pre-image processing: frame even. Post-image processing: 4 groups of curves (liner, logarithmic, exponential, S). Color Display: 8 color modes. Electronic caliper: electronic cursor for multiple distance measurement, Accuracy no less than 0.25mm. Area measurement: Accuracy no lower than ± 0.0625mm2. Delayed depth control: 0mm~15mm. Built-in Calendar & Clock. A-Scan Resolution: 0.01mm Biometry Accuracy: ≤±0.06mm Measuring range (AL): 15-39mm. Total gain: 98dB, user adjustable gain range: 0-55dB. Measuring parameter: anterior chamber depth, lens thickness, vitreous length and axial length. Measuring mode: 5 (normal, aphakic, special, dense cataract and manual measuring). Measuring method: immersion, contact. IOL calculation: SRK-T, SRK-II, BINK-II, HOLLADAY, HOFFER-Q, HAIGIS. Any two calculations can be compared and displayed on the same screen. Calculation of 8 groups’ average with standard deviation (S.D.). 50 groups of results saved permanently. groups of IOL constants can be saved.
