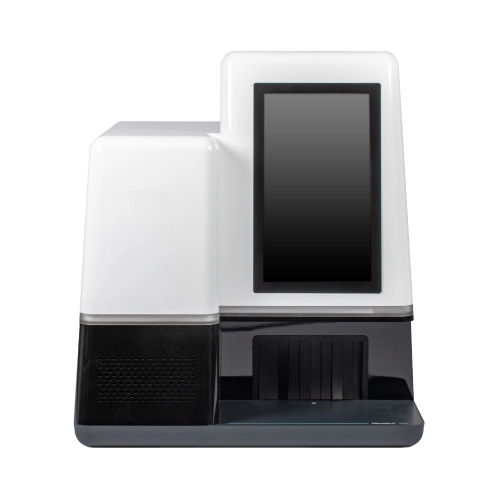

DR X-ray system

table

Overview
Hand Diagnosis Radiography Imaging System design integrates our patented transmission X-ray technology for application in hand diagnostic radiography. Fully compliant with ISO, QMS, and FDA certification for bone age assessment.

Features

• Advanced radiation safety with 80% reduced exposure, ensuring optimal protection for both patients and operators.
• Highly portable design with comprehensive shielding protection, enabling secure imaging anywhere at any time.
• Equipped with current clinical applications for precise Bone Age assessment and accurate fracture detection.
• Future-ready technology featuring advanced bone density measurement and gout diagnosis capabilities.
• All-in-one mobile imaging solution combining safety, portability, and versatile diagnostic applications.

Applications

• Orthopedic Clinics: Diagnosis of fractures, dislocations, and bone-related conditions
• Rheumatology Clinics: Assessment of arthritis, gout, and joint inflammation
• Emergency Rooms: Rapid trauma diagnosis for acute hand injuries
• Hand Surgery Departments: Pre-operative planning and post-surgical monitoring
• Rehabilitation Centers: Tracking bone and joint healing progress
• Pediatric Clinics: Evaluation of bone development and growth plates in children
• Sports Medicine Centers: Diagnosis of sports-related hand and wrist injuries
• Imaging Centers: Specialized hand radiography services
• Occupational Health Clinics: Assessment of work-related hand conditions
• Plastic Surgery Clinics: Pre and post-operative evaluation for hand reconstruction

Product highlights
Benchtop Size: W62 x L65 x H70 cm. Weight: 80 kg.
Radiation Shielding: 5.0 μSv/hr at 5 cm from surface.
Flat Panel Detector
14 X 17 DIGITAL X-RAY DETECTOR
CSI Scintillator
150 μm Pixel Pitch
Module
Tube Voltage: 40 to 70 kVp
Tube Current: 0.10 to 0.50 mA
Spot size: 0.2 mm
Specifications
Tube Voltage: 40 to 70 kV
Tube Current: 0.10 to 0.50 mA
Spot size: 0.20 mm
Dimensions: 620 x 640 x 700 mm
Weight: about 80 kg
Beam Angle: 40° at 45 cm SID
Radiation Field: 10" x 12"
Radiation Shield: Less than 5 pSv/h at 5 cm from the surface of the chassis as per FDA 21 CFR 1020.40

Technical specifications

• Tube Voltage: 40 to 70 kV
• Tube Current: 0.10 to 0.50 mA
• Spot size: 0.20 mm
• Dimensions: 620 x 640 x 700 mm (W x L x H)
• Weight: about 80 kg
• Beam Angle: 40° at 45 cm SID
• Radiation Field: 10" x 12"
• Radiation Shield: Less than 5 pSv/h at 5 cm from chassis surface (FDA 21 CFR 1020.40)
