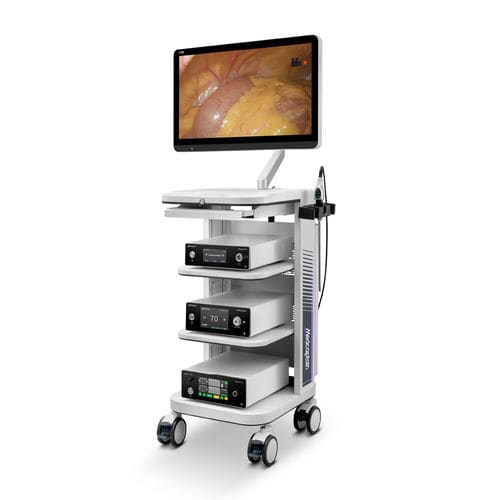

Endoscope camera Smart Eye 101C

surgicaldigital3D

Overview
Full 4K imaging chain delivering up to 3840×2160 resolution for ultra-high-definition visualization. Designed for intraoperative use, the system enhances visualization of vascular networks, nerve fibers and subtle tissue features using white light, NIR and fluorescence modes.

Superior Image Algorithms

• Intelligent smoke penetration & clarity enhancement (Smoke)
• Wide dynamic range balance
• Detail enhancement & highlighting
• 3D digital noise reduction
• Adaptive light metering

Imaging Technologies

• Optical white / NIR imaging with a single imaging system
• Optical fluorescence imaging: real-time simultaneous white light and fluorescence image formation for precise visualization
• Superimposed fluorescence imaging: allows image overlap; high-volume data processing may introduce imaging lag

Clinical Applications — Fluorescence in Various Surgical Specialties

• Hepatobiliary surgery
  • Fluorescence-guided cholangiography
  • Fluorescence labeling of liver tumors
  • Fluorescence identification of liver segments
• Gastrointestinal surgery
  • SLN tracing in gastric and colorectal cancer
  • Imaging of colorectal peritoneal metastases
  • Assessment of colorectal anastomosis perfusion
  • Fluorescence mapping of gastric and colorectal cancers
• Thyroid & breast surgery
  • SLN tracing in thyroid and breast cancer
  • Assessment of breast flap perfusion
  • Parathyroid perfusion and function assessment
• Thoracic surgery
  • SLN tracing for esophageal and lung cancer
  • Fluorescence mapping of pulmonary nodules
  • Thoracic duct imaging
  • Fluorescence identification of lung segments
• Urology / ureterography
  • SLN labeling for prostate and bladder cancer
  • Renal perfusion assessment
  • Fluorescence labeling of kidney tumors
• Gynecology
  • SLN tracing in cervical and endometrial cancer
  • Imaging of ovarian cancer peritoneal metastases

Product Variants & Components

• Endoscope camera system (4K Series)
• Camera system models: Smart Eye 101C / 101D
• Cold light source models: Smart Light 101C / 101D
• Insufflator: Smart Air 101
• Camera head
• Rigid endoscope

Notes

• Provides real-time and precise visualization in both white light and fluorescence modes.
• Superimposed fluorescence mode may introduce imaging lag when processing large data volumes.

Technical specifications

• Maximum resolution: 3840 × 2160 pixels (4K)
• Image enhancement: intelligent smoke penetration, wide dynamic range balance, detail enhancement, 3D digital noise reduction, adaptive light metering
• Imaging modes: white light, near-infrared (NIR), optical fluorescence, superimposed fluorescence
• Clinical indications: hepatobiliary, gastrointestinal, thyroid & breast, thoracic, urology/ureterography, gynecology, orthopedics, general surgery
• System components: camera system (Smart Eye 101C/101D), cold light source (Smart Light 101C/101D), insufflator (Smart Air 101), camera head, rigid endoscope
• Real-time imaging capability; superimposed fluorescence may exhibit processing-induced lag
