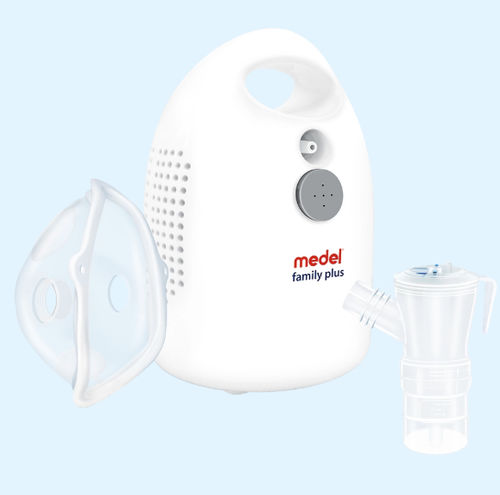

Pneumatic nebulizer Family Plus

for general purposesfor respiratoryportable

Description
Compressor nebulizer with breath-enhanced valve technology.

Overview
Medel FAMILY PLUS is a piston-type compressor nebulizer system designed for home and clinical use. It is supplied with the Medeljet Plus nebulizer featuring a breath-enhanced double-valve system to increase treatment efficiency and reduce drug waste. All accessories can be stored in the included Medel carry bag. Medical device: Class IIa.

Modes

• MODE A: Maximum therapy effectiveness and minimum drug waste (turn the valve to A mode to close it).
• MODE B: Maximum speed of nebulization (turn the valve to B mode to open it).

Mode A details
In MODE A the breath-enhanced system is active: compressed air produces a fine aerosol. The inspiratory valve opens during patient inhalation allowing additional air intake and increasing nebulization output. The expiratory valve opens during patient exhalation, minimizing drug waste and contamination.

Content

• 5 air filters
• Nosepiece
• Medeljet Plus nebulizer
• Adult soft-profile mask
• Pediatric soft-profile mask
• Mouthpiece
• Air tube
• Nasal wash
• Storage bag (included)
• 5-Year Warranty

Technical specifications

• Flow: 5.1 l/min
• Aerosol output (per treatment): 0.45 ml
• Aerosol output rate: 0.089 ml/min
• Nebulization rate: 0.37 ml/min
• Particle size (MMAD): 3.50 μm
• Fine particle fraction (FPF): 92.60%
• Maximum compressor pressure: 2.2 bar
• Noise level: 52 dBA
• Minimum filling volume: 2 ml
• Maximum filling volume: 8 ml
• Operating cycle: 30 min on / 30 min off
• Weight: 1.5 kg
• Dimensions: 18.8 x Ø13.6 cm
