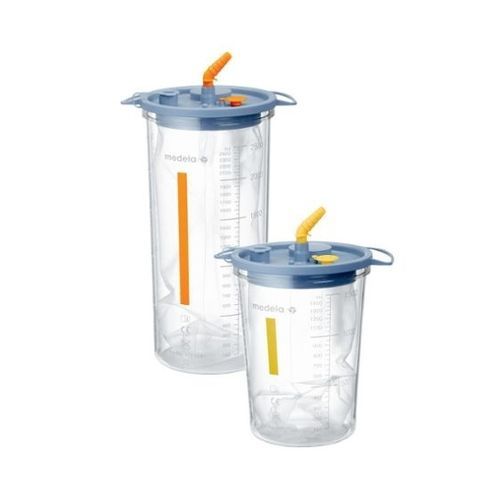

Body fluids suction jar DCS

single-use

Overview
The Disposable Collection System (DCS) is a closed, single-use fluid collection solution for professional suction setups. It uses single-use liners inside jars with hard-top lids that allow immediate vacuum application through the jar to simplify liner exchange and reduce tubing connections.

Key features

• Closed single-use liners with multiple safety elements: overflow filter, high-flow bacteria filter, smoke pre-filter and non-return valve to prevent back-flow.
• Hard-top lids snap onto jars and enable vacuum to be applied directly to the liner (no extra vacuum tubing required for every liner exchange).
• Optional solidifier liners available to reduce spill risk and simplify disposal (subject to local regulations).
• Designed for easy single-handed operation: large liner handles, V-shaped jars and jar locking clasp.
• Low noise emission for reduced disturbance in clinical environments.
• Safety by design: double-layered PA/PE foil construction for high burst resistance and integrated filters to minimise contamination risk.
• Scalable setups: change-over valves or serial connections enable handling larger volumes (configured setups can support combined volumes up to approx. 22 L).

Accessories and disposables

• Disposable liners: 1.5 L (1500 cc) and 2.5 L (2500 cc), standard and solidifier models.
• Patient suction tubing (various connectors, fingertip options) and vacuum tubing (silicone) with different port connections.
• Manual change-over valve with clamp holder and serial connection options for automatic switchover between liners.
• Trolley/carousel trolleys for multi-jar setups and space-efficient installation.
• Disposable specimen cups for tissue/sample collection.

Compatibility

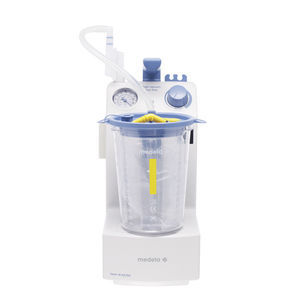

Designed to be used with Medela professional suction pumps and wall suction solutions (examples shown on product pages include Dominant Flex, Vario 18, Vario 8, Basic and similar professional vacuum systems).

Safety & Hygiene
The DCS is a closed single-use solution with high‑flow bacteria retention (product literature indicates ~99.999% retention), overflow protection, smoke pre-filter and a non-return valve; the double-layer PA/PE liner increases burst resistance and reduces contamination risk during handling and disposal.

Technical specifications

• Available liner volumes: 1.5 L (1500 cc) and 2.5 L (2500 cc).
• Filter performance: high-flow bacteria filter (documented retention ~99.999%).
• Liner construction: double-layer PA/PE foil for high burst resistance.
• Optional solidifier: available for 1.5 L and 2.5 L liners.
• Scalability: change-over valve or serial connection options for multi-liner setups (combined volumes up to ~22 L).
• Operation: hard-top lids permit immediate vacuum application; no additional vacuum tubing required per liner exchange.
• Ergonomics: V-shaped jars, large liner handles and jar locking clasp for safe single-handed removal and handling.
• Noise emission: low-noise design suitable for operating rooms and clinical areas.
