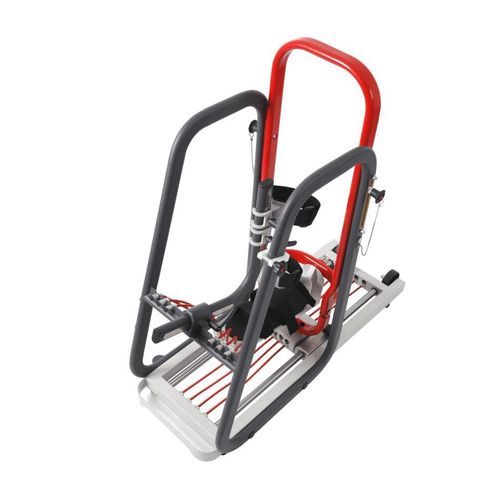

Lower limb continuous passive motion device Avior

kneeankle

Product description
The Avior crurotalar and knee joint rehabilitation device enables effective rehabilitation through self-assisted, active, resistance and functional exercises of the crurotalar (ankle) joint. Avior also provides a knee rehabilitation option, achieved through self-assisted, active and resistance flexion and extension. The self-assisted exercise option allows the therapist to supervise more than one patient at a time. During training the patient defines their pain threshold and the device is adjusted accordingly to ensure safety and comfort. Avior is simple to operate and mobile thanks to wheels installed on the main frame. Its ergonomic, clinician-oriented design supports safe positioning and repeatable motion control.

Features

• Enables passive, active, resistance and functional rehabilitation
• Anatomical axis mapping of the ankle joint integrated into the device
• Compact design for easy transport and storage
• Biofeedback functionality available
• Mobility ensured by wheels on the main frame

Indications

• Cartilage and tendon injuries
• Muscle and ligament strains and pulls
• Twists
• Sprains
• Fractures

Ranges of motion and methods of exercise

• 47° – Plantar flexion (self-assisted, active and active-resistance)
• 40° – Dorsiflexion (self-assisted, active and active-resistance)
• 34° – Pronation and supination (self-assisted, active and active-resistance)
• 30° – Flexion at the knee joint (self-assisted, active and active-resistance)
• 40° – Extension at the knee joint (self-assisted, active and active-resistance)

Technical specifications

• Width [mm]: 390
• Length [mm]: 909
• Height [mm]: 892
• Weight [kg]: 25
• Operating modes: self-assisted, active, active-resistance, passive, functional
• Integrated anatomical axis mapping for ankle
• Biofeedback capability
• Mobile (wheels on main frame) for easy transport
• Designed for therapist supervision of multiple patients and adjustable to patient pain threshold
