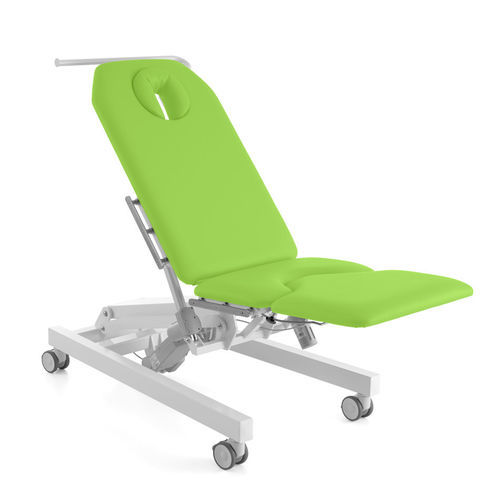

Gynecological examination chair Wenus

electricfoot-operatedwith adjustable backrest

Description
The Wenus chair is designed for gynecological examinations and procedures. It can be converted into a treatment table by fitting an additional seat panel. Electric actuators enable adjustment of seat height, backrest inclination and seat tilt. Controls are available as a footswitch or a handheld remote. The chair is fitted with caster wheels with a locking mechanism. A paper-towel holder is located behind the backrest. A dedicated tilting mechanism allows the bowl to be stored beneath the seat.

Standard equipment

• Seat
• Leg supports mounted on URO clamp
• Bowl with or without drain
• Hand or foot control
• Hand grips

Accessories

• Hand support (left, right, or both) (1 piece)
• IV-procedure hand support
• Foot-operated controller
• Bowl (funnel) holder
• Hand remote controller
• Table panel to extend the seat and convert the chair into a treatment bed
• Swivel panel to support the legs for conversion to a treatment bed — urodynamic chair configuration
• Urological bowl with drain
• Urological or gynecological bowl without drain

Main features

• Functionality: Electric adjustments for height, seat tilt and backrest angle, operable by hand remote or foot control.
• Safety: CE marked — complies with EU safety, health and environmental requirements.
• Ease of use: Simple operation via foot control or single-button remote.
• Technical support: Manufacturer technical support and service available.
• Durability: Constructed from materials resistant to external influences; maximum load 220 kg.
• Mobility: Caster wheels with locking mechanism for safe repositioning and cleaning.
• Upholstery: Available in waterproof, antibacterial, easy-to-clean finishes.

Technical specifications

• Length (excluding operating table panel) [cm]: 182 (140)
• Width (excluding clamps) [cm]: 90 (78)
• Seat (W x D) [cm]: 60 x 38.5
• Backrest (W x H) [cm]: 60 x 90
• Seat height adjustment (sitting position) [cm]: 45–95
• Max. allowable load [kg]: 220
• Weight (excluding accessories) [kg]: 95
• Power supply [V, Hz, A]: 230, 50, 1
• Backrest adjustment [°]: -8 to +58
• Seat support adjustment [°]: 0 to +40
