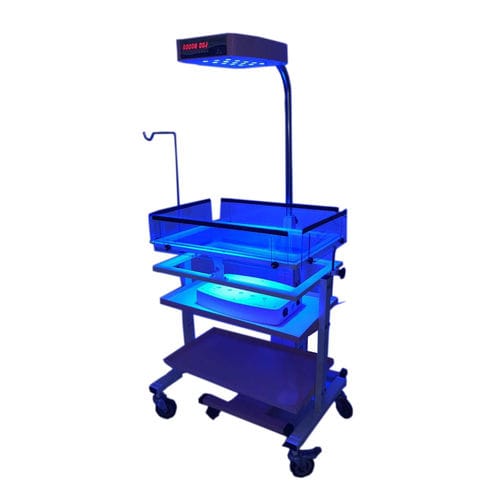

Infant phototherapy lamp P-003
cradle typeUVblue light

infant phototherapy lamp
infant phototherapy lamp
infant phototherapy lamp
infant phototherapy lamp
Add to favorites
Compare this product


Type of phototherapy
cradle type
Radiation type
UV, blue light

400 nm, 450 nm, 470 nm


Phototherapy based on LED technology, which after filtering provide, a light of wavelength approximately 450 to 470 nm with peak wavelength of 450-460nm range. Irradiance minimum 35 µW/cm2/nm at 40 cm height and UV not exceed 10-4 W/m2 in 180nm to 400nm. Digital Hour meter showing total exposure time for current patient clearly visible by operator. Effective light field >700 cm2. Lamp life minimum 20000 hours for LED and has timer to indicate its usage. Over temperature safety cut out is included. Up, down and tilting of head is possible. The unit is mounted with castor wheels with brakes. Variation in intensity over 5-5 hours < 10%. The irradiance ratio (min to max) is greater than 40% on mattress. Green indicator light is provided to indicate that equipment is ready for normal use. Interruption and a restoration of the power supply does not change preset values. LED heat can be reduced by natural cooling. LED is protected from free fall. It does not topple on 10º inclined angle. The temperature of baby bed and metal surfaces does not exceed 40º and 43º for other accessible surfaces. There is intuitive method to indicate the light surface is at the appropriate treatment distance. Mobile stand with movable castors and height adjustment facility along with easy swiveling of source box. Unit can be used along with Infant care trolley, Radiant Warmer and Incubator. UP/DOWN adjustment over Head Unit; The Phototherapy unit can be able to provide effective treatment for beds and incubators of varying heights (generally 1.0 to 1.6m) adjustment of light intensity is provided. Optional Bassinet Clear cabinet for observation of infant.
