Hospital disinfection system STA/P

hydrogen peroxydeultrasonicmobile

Product line overview
Our STA/P series of airborne room atomizers is designed for sanitization and biohazard control in healthcare and indoor environments. The range supports infection-risk reduction and rapid room treatment with models adapted to different room sizes and operational needs.

General features (STA/P family)

• Microbiological effectiveness against viruses and bacteria
• Intended for hospitals, air handling units (AHU), clinics and other indoor healthcare or commercial areas (coverage depends on model)
• Timer for cycle start (instant or programmable on certain models)
• Automatic chemical feeding to internal tank on automatic variants
• Selectable nebulization power and supply fan on advanced models
• 4" colour touch-screen and USB port for cycle download on automatic/touch models
• Supply fan and wheeled base for mobile units
• Chemical used: hydrogen peroxide with silver ions (SIL-OXIDE 220)

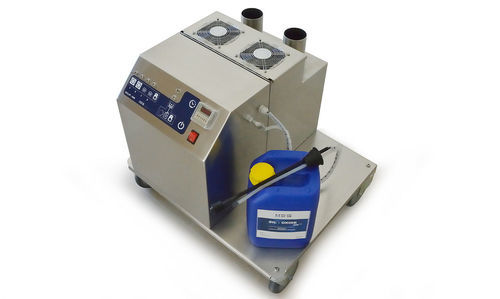

STA/P-220 (presented model)

• Semi-automatic device for nebulizing disinfectant
• Intended use: hospitals, AHU, clinics and areas up to 400 m² and 7.5 m height
• Automatic charging of chemical into the internal tank
• Supply fan and timer to set start
• Ultrasonic nebulizing cells
• Internal tank capacity: 10 L
• Body in SAE 304 stainless steel
• Chemical: hydrogen peroxide with silver ions SIL-OXIDE 220
• Wheeled base and handle for transport
• Sanitizes areas up to 400 m² and 7 m height in one cycle
• Dimensions (WxDxH): 65 x 56 x 52 cm

STA/PD-220 (automatic)

• Automatic model with integrated touch-screen display
• Intended use: areas up to 400 m² and 7 m height
• Microbiological efficacy against viruses and bacteria
• Automatic chemical feed into internal tank
• Timer with instant or programmable start
• 4" colour touch-screen; USB port for cycle data download
• Selection of nebulization power and supply fan
• Wheeled base and handle for easy movement
• Internal tank capacity: 10 L
• Dimensions (WxDxH): 65 x 56 x 52 cm

STA/PM-220 (medium area model)

• Semi-automatic device for nebulizing disinfectant
• Intended use: hospitals, AHU, clinics and areas up to 200 m² and 3 m height
• Timer for cycle start; ultrasonic nebulizing cells
• Internal tank capacity: 2.5 L
• Body in food-grade ABS and SAE 304 stainless steel
• Chemical: hydrogen peroxide with silver ions SIL-OXIDE 220
• 4" colour touch-screen and USB port on selected variants
• Wheeled base; sanitizes up to 200 m² and 3 m height in one cycle
• Dimensions (WxDxH): commonly 50 x 35 x 28 cm (see model variant)

STA/PA-220 (small area model)

• Semi-automatic device for nebulizing disinfectant
• Sanitizes areas up to 40 m² and 3 m height in a single cycle
• Microbiological effectiveness against viruses and bacteria
• Chemical: hydrogen peroxide with silver ions SIL-OXIDE 220
• Timer for instant or programmable start
• Disinfected area ID setting; USB port to download cycles
• Body in food-grade ABS and SAE 304 stainless steel
• Internal tank capacity: 0.75 L
• Dimensions (WxDxH): 25 x 35.5 x 45 cm

Models comparison (table)
MODEL | ROOM SIZE | ROOM HEIGHT | TANK CAPACITY | cm LxDxH
STA/P-220 | Up to 400 m² | Up to 7 m | 10 L | 65 x 56 x 52
STA/PD-220 | Up to 400 m² | Up to 7 m | 10 L | 65 x 56 x 52
STA/PM-220 | Up to 200 m² | Up to 3 m | 2.5 L | 50 x 35 x 28
STA/PA-220 | Up to 40 m² | Up to 3 m | 0.75 L | 25 x 32.5 x 45


Notes
Models in the STA/P family target different room sizes and ceiling heights. Features such as touch-screen, USB cycle download, automatic chemical feeding, tank capacity and body material vary by model. The line is designed for rapid sanitization cycles using hydrogen peroxide with silver ions (SIL-OXIDE 220).

Technical specifications

• Chemical: hydrogen peroxide with silver ions (SIL-OXIDE 220)
• Materials: SAE 304 stainless steel (full or partial) and food-grade ABS on select models
• Internal tank capacities: 10 L (STA/P-220, STA/PD-220), 2.5 L (STA/PM-220), 0.75 L (STA/PA-220)
• Control: timer (instant or programmable), 4" colour touch-screen and USB port for cycle traceability on select models
• Nebulization: ultrasonic cells; selectable nebulization power on some models
• Mobility: wheeled base and handles on mobile versions
• Representative dimensions: STA/P-220 & STA/PD-220: 65 x 56 x 52 cm; STA/PM-220: 50 x 35 x 28 cm (variant); STA/PA-220: 25 x 35.5 x 45 cm
• Coverage per cycle: up to 400 m² (STA/P-220, STA/PD-220), up to 200 m² (STA/PM-220), up to 40 m² (STA/PA-220), with height limits per model
