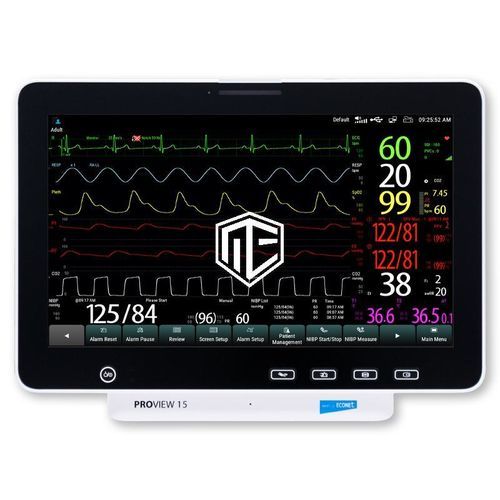

Portable patient monitor PROview 15

modularECGSpO2

PROview 15 – Modular patient monitor for clinic, operating theatre and hospital

Flexible monitoring with modular expandability
The PROview 15 is a powerful, modular patient monitor designed for reliable surveillance of key vital signs in clinical and practice settings. With a large touch display, a customizable user interface and flexible expansion options, the system is suited to a wide range of medical applications.

Key advantages at a glance:

• 15" color touch display
• 5-lead ECG included as standard
• SpO2 and NIBP measurement included
• Optional temperature measurement via skin or oral/rectal probe
• Optional expansion for EtCO2 and IBP
• 3 free module slots for individual expansion
• Integrated thermal printer
• NEWS (New Early Warning Score) integrated
• Glasgow Coma Scale (GCS) integrated
• Customizable user interface
• Integrated battery for flexible deployment

Suitable for demanding clinical areas
The PROview 15 is appropriate for both outpatient specialists and clinical environments with advanced requirements. Its large display and modular design make the system highly adaptable.

Typical application areas

• Gastroenterology
• Cardiology
• Endoscopy
• Ambulatory surgery centers
• Recovery rooms
• Intensive care areas
• Emergency departments
• Ward monitoring

Modular expansion via 3 free module slots
A key feature of the PROview 15 is the three integrated module slots, allowing the monitor to be tailored to different clinical requirements.

Possible modules (selection)

• EtCO2 (capnography)
• IBP (invasive blood pressure)
• Extended temperature monitoring
• Additional pressure channels
• Advanced respiratory gas monitoring
• Other specialist modules depending on configuration

Customizable user interface
The PROview 15 user interface can be tailored to show only the parameters needed in each work area. Integrated functions such as NEWS and the Glasgow Coma Scale (GCS) support rapid clinical assessment. The integrated thermal printer enables direct documentation of key measurements at the device.

Powerful and flexible in daily use
The combination of a large display, modular design and integrated battery makes the PROview 15 suitable for flexible use across clinics, ambulances and hospital departments.

Features / Specifications (technical data)

• Model: PROview 15
• Display: 15" color touch display
• Standard parameters: 5-lead ECG, SpO2, NIBP
• Optional parameters: Temperature (skin, oral/rectal), EtCO2, IBP
• Module expansion: 3 free module slots
• Printer: Integrated thermal printer
• Integrated scores: NEWS, Glasgow Coma Scale (GCS)
• Battery operation: Integrated battery for mobile use
• Weight: approx. 9.5 kg
