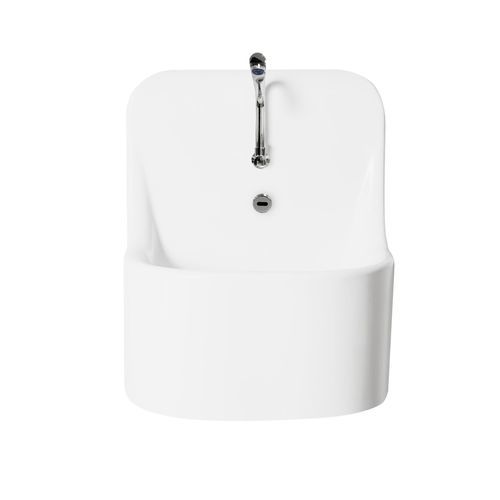

1-bay surgical sink MP’MEDIO ®

polyesterelectronically-operatedwith aseptic coating

Product overview
Positioned between the SMART and UNO models, the MP’MEDIO medical sink is designed for daily aseptic handwashing and occasional surgical washing. Its compact footprint allows installation in small operating-theatre airlocks and independent medical practices while meeting aseptic hygiene requirements. Suitable for consultations and minor procedures, it is intended for use by nurses and physicians in clinical environments.

Technology & innovation

• Impact- and stain-resistant one-piece molded material.
• Rounded shapes and anti-stagnation coating to limit water accumulation and simplify cleaning.
• Designed for simplified installation and maintenance.

Key features

• Hybrid model between SMART and UNO, suited to small operating-theatre airlocks and medical offices.
• Hygienic design without overflow or gaps to reduce bacterial risk areas.
• High back panel and lateral cheeks for enhanced protection of surrounding areas.
• Rounded edges with no sharp corners to facilitate cleaning and prevent water deposits.

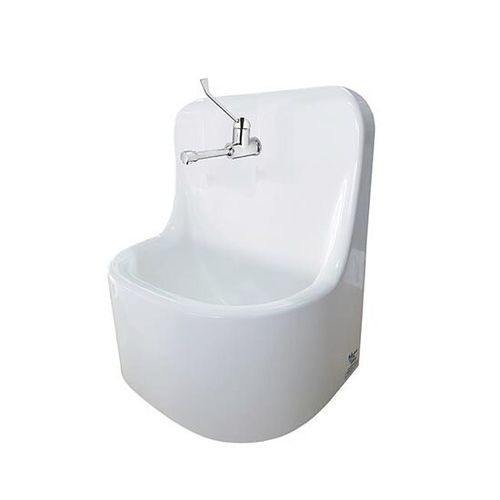

• Optional wall-mounted tap to reduce contact points and bacterial accumulation.
• Extra-wide and deep basin to limit splashing.

Customization / Controls
As with the Medical Process range, MP’MEDIO is available with three water control systems and a full range of hygiene and water-treatment options.

• Infrared electronics — Dual power supply: mains and combined battery unit supplied as standard. Reliable operation in critical conditions. Includes automatic purge to limit mixed-water stagnation.
• Elbow mechanism — Simplified manual use with optional mixing at the tap. Includes anti-scald stop.
• Femoral mechanism — Delayed mechanical triggering activated at knee level.
• New Standard spout — Robust and removable for disinfection when required.
• Optional straight spout — Allows complete draining of the spout and limits spout height.

Information (physical items & supply)

• Recommended environments: medical practices, consultation rooms, operating-theatre airlocks, treatment rooms, nursing stations, maternity wards, resuscitation boxes, delivery rooms, corridors and patient rooms.
• Supplied items: stainless-steel wall-mounting kit; supply hoses; Ø40 mm drain and siphon; flow-limiting valve.

Specifications / technical data

• Model length (L): 600 mm
• Model height (H): 710 mm
• Model depth (P): 460 mm
• Weight: 10 kg (indicative)
• Drain diameter: Ø40 mm (drain and siphon)
• Wall mounting kit: stainless steel
• Connection hoses: supplied
• Flow control: flow-limiting valve supplied
• Adaptable terminal filter: one-click adaptable terminal filter
• Controls: three control types available (infrared electronics, elbow mechanism, femoral mechanism)
• Material: impact- and stain-resistant molded composite with anti-stagnation coating and rounded shapes for easy cleaning and hygiene
